Decorator Pattern

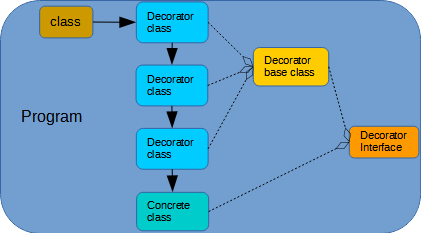

Diagram of the decorator pattern

The decorator pattern provides a way to extend capabilities to an instance of a class without altering the original class. The intention is to extend the capabilities at runtime, providing a dynamic and potentially user-driven level of extension. This is done by having the decorators provide the same interface as the object being decorated. that way, the decorators can wrap the object or other decorators and still look like the same kind of object to the calling entity.

This kind of architecture requires cooperation among all the decorators and classes being decorated by having each class implement the same abstract interface (again, so all the classes look the same to each other). The decorators then wrap any object with the same abstract interface. The ability of decorators being able to wrap other decorators automatically builds a kind of nested hierarchy, similar to a Composite pattern except that the decorators don't typically support multiple children in a single decorator.

Since each decorator looks like any other decorator (of the same kind), the decorators need to be designed to work in pretty much any order, with the core or concrete class taking whatever parameters it needs to be instantiated (by definition, the concrete class does not take a decorator; decorators are applied to the concrete class by wrapping the concrete class).

How to Use

Links to the Decorator classes

C++	C#	Python	C
IRenderElement interface	IRenderElement interface	IRenderElement interface	Not Applicable
TextElement class	TextElement class	TextElement class	DynamicString structure
Decorator base class	Decorator base class	Decorator base class	_Decorate() function
WhiteBackgroundDecorator derived class	WhiteBackgroundDecorator derived class	WhiteBackgroundDecorator derived class	WhiteBackgroundDecorator() function
UnderlineDecorator derived class	UnderlineDecorator derived class	UnderlineDecorator derived class	UnderlineDecorator() function
RedForegroundDecorator derived class	RedForegroundDecorator derived class	RedForegroundDecorator derived class	RedForegroundDecorator() function

In this example, the concrete class is called TextElement and up to three decorators can be applied (WhiteBackgroundDecorator, UnderlineDecorator, and RedForegroundDecorator). Decorators should ideally be designed to be applied in any order, as is the case here. If an order is required, the documentation that comes with the decorators would explain it. All decorators implement a base class that manages the wrapped elements (and implements the IRenderElement interface) and the TextElement class just implements the IRenderElement interface.

C++

    void Decorator_Exercise()
    {
        std::cout << std::endl;
        std::cout << "Decorator Exercise" << std::endl;

        IRenderElement::shared_ptr_t baseElement;
        baseElement = std::make_shared<TextElement>("This is raw text");

        // Wrap the base element in three decorators.
        IRenderElement::shared_ptr_t wrappedElement =
            std::make_shared<WhiteBackgroundDecorator>(
                std::make_shared<UnderlineDecorator>(
                    std::make_shared<RedForegroundDecorator>(baseElement)));

        // Now render the elements to the console.
        std::cout
            << Helpers::formatstring("  base Text element: \"%s\"", baseElement->Render().c_str())
            << std::endl;
        std::cout
            << Helpers::formatstring("  Decorated element: \"%s\"", wrappedElement->Render().c_str())
            << std::endl;

        std::cout << "  Done." << std::endl;
    }

C#

        public void Run()
        {
            Console.WriteLine();
            Console.WriteLine("Decorator Exercise");
            IRenderElement baseElement = new TextElement("This is raw text");

            // Wrap the base element in three decorators.
            IRenderElement wrappedElement =
                new WhiteBackgroundDecorator(
                    new UnderlineDecorator(
                        new RedForegroundDecorator(baseElement)));

            // Now render the elements to the console.
            Console.WriteLine("  base Text element: \"{0}\"", baseElement.Render());
            Console.WriteLine("  Decorated element: \"{0}\"", wrappedElement.Render());
            Console.WriteLine("  Done.");
        }

Python

def Decorator_Exercise():
    print()
    print("Decorator Exercise")

    baseElement = TextElement("This is raw text")

    # Wrap the base element in three decorators.
    wrappedElement = \
        WhiteBackgroundDecorator(
            UnderlineDecorator(
                RedForegroundDecorator(baseElement)
            )
        )

    # Now render the elements to the console.
    print("  base Text element: \"{0}\"".format(baseElement.Render()))
    print("  Decorated element: \"{0}\"".format(wrappedElement.Render()))

    print("  Done.")

C

void Decorator_Exercise(void)
{
    printf("\nDecorator_Exercise\n");

    const char* text = "This is raw text";

    DynamicString string;
    DynamicString_Initialize(&string);
    DynamicString_Set(&string, text);

    // Wrap the base element in three decorators.
    DynamicString* rendering = NULL;
    rendering = WhiteBackgroundDecorator(UnderlineDecorator(RedForegroundDecorator(&string)));

    printf("  Base Text element: \"%s\"\n", text);
    printf("  Decorated element: \"%s\"\n", rendering->string);
    DynamicString_Clear(&string);

    printf("  Done.\n");
}

Rust

(Apologies. Doxygen does not understand Rust syntax and therefore cannot colorize the code.)

pub fn decorator_exercise() -> Result<(), String> {
    println!("");
    println!("Decorator Exercise");

    let base_element = TextElement::new("This is raw text");
    // Wrap the base element in three decorators.
    let mut wrapped_element = WhiteBackgroundDecorator::new(base_element.clone());
    wrapped_element = UnderlineDecorator::new(wrapped_element.clone());
    wrapped_element = RedForegroundDecorator::new(wrapped_element.clone());

    // Now render the elements to the console.
    println!("  base Text element: \"{}\"", base_element.render());
    println!("  Decorated element: \"{}\"", wrapped_element.render());

    println!("  Done.");

    Ok(())
}
