Flyweight Pattern

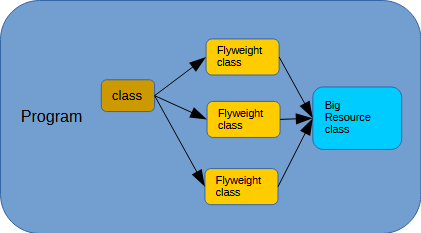

Diagram of the flyweight pattern

The flyweight pattern is used to represent some resource that can be shared multiple times. The flyweight class contains just enough information to identify the resource and some context in which the instance of each flyweight class is used. Instances of flyweight classes are always obtained through a class factory that is provided with the context information as a parameter.

The intent is to represent the shared resource with a small, lightweight class instance that can be used many times without incurring large memory penalties that might occur if the shared resource was actually duplicated many times.

An early form of flyweight class is a handle to a resource. The handle was typically a 32-bit value and could be easily shared and passed around with minimal impact to the system. The drawback is context information could not be easily attached to the handle.

The contents of a flyweight class typically consists of a handle to the resource and some context information. The context information is provided by the caller to the flyweight factory to be inserted into a new instance of the flyweight class.

How to Use

Links to the Flyweight classes

C++	C#	Python	C
Flyweight_Class class	Flyweight_Class class	Flyweight_Class class	Flyweight_Image structure Flyweight_ImageList structure
Flyweight_Context struct	Flyweight_Context struct	Flyweight_Context class	Flyweight_Context structure
BigResource class	BigResource class	BigResource class	BigResource structure BigResourceList structure BigResource_Render()
BigResourceManager class	BigResourceManager class	BigResourceManager class	BigResourceManager_Clear() BigResourceManager_AddResource() BigResourceManager_GetResource()

This example uses an image as the "big" resource. The image is composed of a set of smaller images, all the same size, and all arranged in a single horizontal row. Each smaller image is associated with one Flyweight class instance and the smaller image's background is the number of the Flyweight class instance. For example, for 3 flyweight instances:

+----------------------------++----------------------------++----------------------------+
|0000000000000000000000000000||1111111111111111111111111111||2222222222222222222222222222|
|0000000000000000000000000000||1111111111111111111111111111||2222222222222222222222222222|
|0000000000000000000000000000||1111111111111111111111111111||2222222222222222222222222222|
+----------------------------++----------------------------++----------------------------+

The flyweight class represents a position for that image as the context, along with an offset into the big resource to the left edge of that flyweight class instance's image. The flyweight class also contains velocity information for moving the flyweight instance around a display. Of course, everything is in text but it's the thought that counts.

Example output:

Flyweight Exercise
  The image rendered 5 times:
     39/1000 iterations [press a key to exit early]
  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~+----------------------------+~~
  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~|0000000000000000000000000000|~~
  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~|0000000000000000000000000000|~~
  ~~~~~~+----------------------------+~~~~~~~~~~~~|0000000000000000000000000000|~~
  ~~~~~~|1111111111111111111111111111|~~~~~~~~~~~~+----------------------------+~~
  ~~~~~~|1111111111111111111111111111|~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
  ~~~~~~|1111111111111111111111111111|~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
  ~~+----------------------------+---+~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
  ~~|222222222222222222222222+----------------------------+~~~~~~~~~~~~~~~~~~~~~~~
  ~~|222222222222222222222222|4444444444444444444444444444|~~~~~~~~~~~~~~~~~~~~~~~
  ~~|222222222222222222222222|4444444444444444444444444444|------------+~~~~~~~~~~
  ~~+------------------------|4444444444444444444444444444|333333333333|~~~~~~~~~~
  ~~~~~~~~~~~~~~~~~~~~~~~~~~~+----------------------------+333333333333|~~~~~~~~~~
  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~|3333333333333333333333333333|~~~~~~~~~~
  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~+----------------------------+~~~~~~~~~~
  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
  Done.

C++

    void Flyweight_Exercise()
    {
        std::cout << std::endl;
        std::cout << "Flyweight Exercise" << std::endl;

        // Define the display and image size.
        const int DISPLAY_WIDTH = 80;
        const int DISPLAY_HEIGHT = 20;
        const int IMAGE_WIDTH = 30;
        const int IMAGE_HEIGHT = 5;
        const int NUMFLYWEIGHTS = 5;
        const int NUM_ITERATIONS = 1000;

        int bigResourceId = _Flyweight_GenerateBigResource(NUMFLYWEIGHTS, IMAGE_WIDTH, IMAGE_HEIGHT);
        FlyweightClassList flyweightInstances;
        flyweightInstances = _Flyweight_GenerateFlyweightClasses(bigResourceId, NUMFLYWEIGHTS,
            IMAGE_WIDTH, IMAGE_HEIGHT, DISPLAY_WIDTH, DISPLAY_HEIGHT);

        // Create the "display".
        // We use a list of character arrays so we can write to each
        // character position individually.  In C#, strings are immutable
        // and changing a character in a string is not allowed.
        std::vector<std::vector<char>> displayArea = _Flyweight_GenerateDisplay(DISPLAY_WIDTH, DISPLAY_HEIGHT);

        // Finally, display the rendered output.
        std::cout << Helpers::formatstring("  The image rendered %d times:", NUMFLYWEIGHTS) << std::endl;
        std::cout << std::endl; // Blank line for iteration count
        _Flyweight_RenderFlyweights(flyweightInstances, displayArea);
        _Flyweight_ShowDisplay(displayArea);

        Helpers::disableinputecho();
        // Now let's have some fun and bounce those images around for a while!
        // (Or until a keypress.)
        int cursorLeft = -1;
        int cursorTop = -1;
        Helpers::getcursorposition(&cursorTop, &cursorLeft);
        if (cursorLeft != -1 && cursorTop != -1)
        {
            cursorTop -= DISPLAY_HEIGHT + 1;
        }
        for (int index = 0; index < NUM_ITERATIONS; ++index)
        {
            if (cursorLeft != -1)
            {
                Helpers::setcursorposition(cursorTop - 1, cursorLeft);
            }
            std::cout << Helpers::formatstring("  %5d/%d iterations [press a key to exit early]", index + 1, NUM_ITERATIONS) << std::endl;
            if (cursorLeft != -1)
            {
                Helpers::setcursorposition(cursorTop, cursorLeft);
            }

            _Flyweight_ClearDisplay(displayArea);
            _Flyweight_MoveFlyweights(flyweightInstances, DISPLAY_WIDTH, DISPLAY_HEIGHT);
            _Flyweight_RenderFlyweights(flyweightInstances, displayArea);
            _Flyweight_ShowDisplay(displayArea);
            Helpers::sleep(16); // 60 frames a second
            if (Helpers::checkforkey())
            {
                Helpers::readkey();
                break;
            }
        }
        Helpers::enableinputecho();

        std::cout << "  Done." << std::endl;
    }

C#

        public void Run()
        {
            Console.WriteLine();
            Console.WriteLine("Flyweight Exercise");

            // Define the display and image size.
            const int DISPLAY_WIDTH = 80;
            const int DISPLAY_HEIGHT = 20;
            const int IMAGE_WIDTH = 30;
            const int IMAGE_HEIGHT = 5;
            const int NUMFLYWEIGHTS = 5;
            const int NUM_ITERATIONS = 1000;

            int bigResourceId = _Flyweight_GenerateBigResource(NUMFLYWEIGHTS, IMAGE_WIDTH, IMAGE_HEIGHT);
            List<Flyweight_Class> flyweightInstances;
            flyweightInstances = _Flyweight_GenerateFlyweightClasses(bigResourceId, NUMFLYWEIGHTS,
                IMAGE_WIDTH, IMAGE_HEIGHT, DISPLAY_WIDTH, DISPLAY_HEIGHT);

            // Create the "display".
            // We use a list of character arrays so we can write to each
            // character position individually.  In C#, strings are immutable
            // and changing a character in a string is not allowed.
            List<char[]> displayArea = _Flyweight_GenerateDisplay(DISPLAY_WIDTH, DISPLAY_HEIGHT);

            // Finally, display the rendered output.
            Console.WriteLine("  The image rendered {0} times:", NUMFLYWEIGHTS);
            Console.WriteLine(""); // Blank line for iteration count
            _Flyweight_RenderFlyweights(flyweightInstances, displayArea);
            _Flyweight_ShowDisplay(displayArea);

            // Now let's have some fun and bounce those images around for a while!
            // (Or until a keypress.)
            int cursorLeft = Console.CursorLeft;
            int cursorTop = Console.CursorTop;
            cursorTop -= DISPLAY_HEIGHT + 1;
            for (int index = 0; index < NUM_ITERATIONS; ++index)
            {
                Console.SetCursorPosition(cursorLeft, cursorTop - 1);
                Console.WriteLine("  {0,5}/{1} iterations [press a key to exit early]", index + 1, NUM_ITERATIONS);
                Console.SetCursorPosition(cursorLeft, cursorTop);

                _Flyweight_ClearDisplay(displayArea);
                _Flyweight_MoveFlyweights(flyweightInstances, DISPLAY_WIDTH, DISPLAY_HEIGHT);
                _Flyweight_RenderFlyweights(flyweightInstances, displayArea);
                _Flyweight_ShowDisplay(displayArea);
                System.Threading.Thread.Sleep(16); // 60 frames a second
                if (Console.KeyAvailable)
                {
                    Console.ReadKey();
                    break;
                }
            }
            Console.WriteLine("  Done.");
        }

Python

def Flyweight_Exercise():
    print()
    print("Flyweight Exercise")

    # Define the display and image size.
    DISPLAY_WIDTH = 80
    DISPLAY_HEIGHT = 20
    IMAGE_WIDTH = 30
    IMAGE_HEIGHT = 5
    NUMFLYWEIGHTS = 5
    NUM_ITERATIONS = 1000

    bigResourceId = _Flyweight_GenerateBigResource(NUMFLYWEIGHTS, IMAGE_WIDTH, IMAGE_HEIGHT)
    flyweightInstances = _Flyweight_GenerateFlyweightClasses(bigResourceId, NUMFLYWEIGHTS,
        IMAGE_WIDTH, IMAGE_HEIGHT, DISPLAY_WIDTH, DISPLAY_HEIGHT)

    # Create the "display".
    # We use a list of character arrays so we can write to each
    # character position individually.  In C#, strings are immutable
    # and changing a character in a string is not allowed.
    displayArea = _Flyweight_GenerateDisplay(DISPLAY_WIDTH, DISPLAY_HEIGHT)

    # Finally, display the rendered output.
    print("  The image rendered {0} times:".format(NUMFLYWEIGHTS))
    print() # Blank line for iteration count
    _Flyweight_RenderFlyweights(flyweightInstances, displayArea)
    _Flyweight_ShowDisplay(displayArea)

    helpers = Helpers()
    # Now let's have some fun and bounce those images around for a while!
    # (Or until a keypress.)
    cursorLeft, cursorTop = helpers.getcursorposition()
    if cursorLeft != -1 and cursorTop != -1:
        cursorTop -= DISPLAY_HEIGHT + 1

    for index in range(0, NUM_ITERATIONS):
        if cursorLeft != -1:
            helpers.setcursorposition(cursorLeft, cursorTop - 1)
        print("  {0:5}/{1} iterations [press a key to exit early]".format(index + 1, NUM_ITERATIONS))
        if cursorLeft != -1:
            helpers.setcursorposition(cursorLeft, cursorTop)

        _Flyweight_ClearDisplay(displayArea)
        _Flyweight_MoveFlyweights(flyweightInstances, DISPLAY_WIDTH, DISPLAY_HEIGHT)
        _Flyweight_RenderFlyweights(flyweightInstances, displayArea)
        _Flyweight_ShowDisplay(displayArea)
        helpers.sleep(16) # 60 frames a second
        if helpers.checkforkey():
            helpers.readkey()
            break

    print("  Done.")

C

void Flyweight_Exercise(void)
{
    printf("\nFlyweight_Exercise\n");

    // Define the display and image size.
    const int DISPLAY_WIDTH = 80;
    const int DISPLAY_HEIGHT = 20;
    const int IMAGE_WIDTH = 30;
    const int IMAGE_HEIGHT = 5;
    const int NUMFLYWEIGHTS = 5;
    const int NUM_ITERATIONS = 1000;

    int bigResourceId = _Flyweight_GenerateBigResource(NUMFLYWEIGHTS, IMAGE_WIDTH, IMAGE_HEIGHT);
    printf("bigResourceId = %d\n", bigResourceId);

    Flyweight_ImageList imageList = { 0 };
    _Flyweight_GenerateFlyweightClasses(bigResourceId, NUMFLYWEIGHTS,
        IMAGE_WIDTH, IMAGE_HEIGHT, DISPLAY_WIDTH, DISPLAY_HEIGHT, &imageList);

    // Create the "display".
    // We use a list of character arrays so we can write to each
    // character position individually.  In C#, strings are immutable
    // and changing a character in a string is not allowed.
    Display displayArea = { 0 };
    _Flyweight_GenerateDisplay(&displayArea, DISPLAY_WIDTH, DISPLAY_HEIGHT);

    // Finally, display the rendered output.
    printf("  The image rendered %d times:\n", NUMFLYWEIGHTS);
    printf("\n"); // Blank line for iteration count
    _Flyweight_RenderFlyweights(&imageList, &displayArea);
    _Flyweight_ShowDisplay(&displayArea);

    disableinputecho();
    // Now let's have some fun and bounce those images around for a while!
    // (Or until a keypress.)
    int cursorLeft = -1;
    int cursorTop = -1;
    getcursorposition(&cursorTop, &cursorLeft);
    if (cursorLeft != -1 && cursorTop != -1)
    {
        cursorTop -= DISPLAY_HEIGHT + 1;
    }

    for (int index = 0; index < NUM_ITERATIONS; ++index)
    {
        if (cursorLeft != -1)
        {
            setcursorposition(cursorTop - 1, cursorLeft);
        }
        printf("  %5d/%d iterations [press a key to exit early]\n", index + 1, NUM_ITERATIONS);
        if (cursorLeft != -1)
        {
            setcursorposition(cursorTop, cursorLeft);
        }

        _Flyweight_ClearDisplay(&displayArea);
        _Flyweight_MoveFlyweights(&imageList, DISPLAY_WIDTH, DISPLAY_HEIGHT);
        _Flyweight_RenderFlyweights(&imageList, &displayArea);
        _Flyweight_ShowDisplay(&displayArea);
        sleep(16); // 60 frames a second
        if (checkforkey())
        {
            readkey();
            break;
        }
    }
    enableinputecho();

    // Cleanup
    Display_Destroy(&displayArea);
    Flyweight_ImageList_Clear(&imageList);
    BigResourceManager_Clear();

    printf("  Done.\n");
}

Rust

(Apologies. Doxygen does not understand Rust syntax and therefore cannot colorize the code.)

pub fn flyweight_exercise() -> Result<(), String> {
    println!("");
    println!("Flyweight Exercise");

    let mut big_resource_manager = BigResourceManager::new();
    let big_resource = _flyweight_generate_big_resource(NUMFLYWEIGHTS, IMAGE_WIDTH, IMAGE_HEIGHT);
    let resource_id = big_resource_manager.add_resource(big_resource);
    println!("bigResourceId = {resource_id}");

    let mut flyweight_images: Vec<FlyweightImage> = Vec::new();
    _flyweight_generate_flyweight_images(resource_id, NUMFLYWEIGHTS,
        IMAGE_WIDTH, IMAGE_HEIGHT, DISPLAY_WIDTH, DISPLAY_HEIGHT,
        &mut flyweight_images);

    // Create the "display".
    // We use a list of character arrays so we can write to each
    // character position individually.  In Rust, strings are immutable
    // and changing a character in a string is not allowed.
    let mut display = _fylweight_generate_display(DISPLAY_WIDTH, DISPLAY_HEIGHT);

    // Finally, display the rendered output.
    println!("  The image rendered {} times:", NUMFLYWEIGHTS);
    println!(); // Blank line for iteration count
    _flyweight_render_images(&big_resource_manager, &flyweight_images, &mut display);
    _flyweight_show_display(&display);

    // Initialize raw key input before getting cursor position.
    cursor::hide_cursor();

    // Now let's have some fun and bounce those images around for a while!
    // (Or until a keypress.)
    let (cursor_left, mut cursor_top) = cursor::get_cursor_position();
    cursor_top -= (DISPLAY_HEIGHT + 1) as u16;

    for index in 0..NUM_ITERATIONS {
        cursor::set_cursor_position(cursor_left, cursor_top - 1);
        println!("  {:5}/{} iterations [press a key to exit early]", index + 1, NUM_ITERATIONS);
        cursor::set_cursor_position(cursor_left, cursor_top);
        _flyweight_clear_display(&mut display);
        _flyweight_move_images(&mut flyweight_images, display.width, display.height);
        _flyweight_render_images(&big_resource_manager, &flyweight_images, &mut display);
        _flyweight_show_display(&display);
        thread::sleep(Duration::from_millis(16)); // 60 frames a second
        if key_input::check_for_key() {
            break;
        }
    }
    cursor::show_cursor();

    println!("  Done.");

    Ok(())
}

See Also

• Main page
