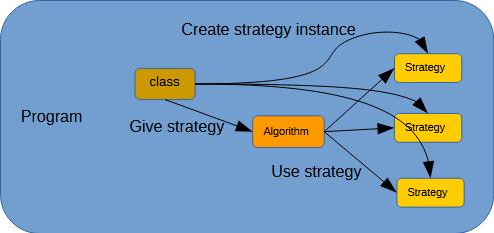

Diagram of the Strategy pattern

The Strategy pattern is used when a choice of multiple different but related algorithms can be made at run time. The implementation of each related algorithm exposes the same interface so as to hide the details of implementation from the calling program and the algorithm.

In a more general form, a "Strategy" is nothing more than a class implementation hidden behind an abstract interface. This allows the implementation to be changed without affecting the caller. The Strategy pattern takes this one step further to allow entire algorithms to be hidden behind the interface and then swap in different instances of the interface at run time to change the algorithm being used.

Typically a Strategy pattern implementation specifies the algorithm at the time the program starts up or is configured. It can also be configured at the time a class representing the functionality is instantiated. The algorithm to use is generally selected by the user based on some input. Once set, the algorithm selected does not change until reconfigured or the user selects another algorithm.

The value of a Strategy pattern is the ability to create a basic infrastructure for the program and then allow the user to alter the behavior of that infrastructure using options. Also, additional strategies for each option can be added without changing the basic infrastructure or affecting any other strategy. The drawback is now the functionality of the program is spread out across many different classes and it can be quite difficult following the flow of execution, especially if a strategy can itself have its own set of strategies.

The only tricky part of making use of the Strategy pattern is figuring out what the interface should be for all possible algorithms for a given situation. The simplest approach to solving this is to determine what must the algorithm provide to the caller to allow the caller to get work done then defining an interface that provides that functionality. Then create the implementation of algorithms that satisfies the required functionality.

For example, a program such as dir or ls can list files and folders in a variety of formats. This program has one feature: display information about files and folders. This feature can be broken down into two components:

Fetch information about files/folders
Show the fetched information about the files/folders

To fetch the information about files and folders, there are several options:

with no arguments, look at all files and folders in the current folder
Specify matching files/folders (can include wildcards)
Specify with a wildcard the files/folders to look at
Recurse through all folders for all files/folders
Recurse through all folders for all matching files/folders

Each of these can be represented by a strategy for reading information about files/folders. That is, an interface can be defined that returns a list of files/folders given a pattern. Then specific implementations of the interface can deal with matching files and recursing through folders.

The same approach can be taken with displaying the information:

Show all information about files/folders in sorted order
Show only the names of files/folders in sorted order
Show only the names of files in sorted order
Show only the names of folders in sorted order

Each of these display options could be a strategy. Define an interface that takes a list of information about files/folders and display all or some of the information in the given order.

The "in sorted order" suggests a third strategy is needed: How to sort the list of files/folders. For example, sort by name, length, type, or date, with an option to reverse the order.

The ls program works (in general) like this (based on input parameters, including default parameters):

Select and use a strategy to read in information about files/folders.
Select and use a strategy to sort the list of information about files/folders
Select and use a strategy to display the sorted list of information about files/folders.

With this approach, the pseudo-code for an object-oriented implementation of the ls program might look like this:

Create instance of file fetch interface based on input parameters
Create instance of sorting interface based on input parameters
Create instance of display interface based on input parameters
Get list of files using file fetch interface
Sort list of files using sorting interface
Show list of files using display interface
Done.

All the really hard stuff happens inside the implementation of each strategy. And additional implementations of each strategy can be added later on without affecting the above pseudo-code.

How to Use

Links to the Strategy classes and interfaces
C++	C#	Python	C
ISortEntries interface	ISortEntries interface	Strategy_SortEntries_ClassFactory interface	<Not Applicable>
Strategy_SortEntries_ClassFactory class	ISortEntries interface	Strategy_SortEntries_ClassFactory class	SortStrategy_Initialize()
Strategy_SortEntries_ByName class	Strategy_SortEntries_ByName class	Strategy_SortEntries_ByName class	Sort_Entries() _Compare_Name()
Strategy_SortEntries_ByAge class	Strategy_SortEntries_ByAge class	Strategy_SortEntries_ByAge class	Sort_Entries() _Compare_Age()
Strategy_SortEntries_ByHeight class	Strategy_SortEntries_ByHeight class	Strategy_SortEntries_ByHeight class	Sort_Entries() _Compare_Height()
Strategy_ShowEntries_Class	Strategy_ShowEntries_Class class	Strategy_ShowEntries_Class class	Display_Entries()

As interesting as the above file lister example would be, it would be just a bit too long as an example (like a 1000 lines long). So in a considerably simpler example with only one strategy, a list of people with Name, Age, and Height are sorted in some order based on a selected strategy. The list of individuals is then shown in the sorted order. The sort has a modification where the order can be reversed from ascending to descending.

Note: It is strongly advised not to use the word "Strategy" when naming the interfaces. That name is too generic. Name the interfaces based on what the interfaces are used for and that includes the methods exposed through the interface. The only reason I'm using "Strategy" in this example is to help group the public classes into the patterns being demonstrated.

C++

    void Strategy_Exercise()
    {
        std::cout << std::endl;
        std::cout << "Strategy Exercise" << std::endl;

        Strategy_ShowEntries_Class displaySortedByNameAscending(SortOptions::ByName, false);
        displaySortedByNameAscending.ShowEntries(entries);

        Strategy_ShowEntries_Class displaySortedByAgeAscending(SortOptions::ByAge, false);
        displaySortedByAgeAscending.ShowEntries(entries);

        Strategy_ShowEntries_Class displaySortedByHeightDescending(SortOptions::ByHeight, true);
        displaySortedByHeightDescending.ShowEntries(entries);

        std::cout << "  Done." << std::endl;
    }

C#

        public void Run()
        {
            Console.WriteLine();
            Console.WriteLine("Strategy Exercise");

            Strategy_ShowEntries_Class displaySortedByNameAscending;
            displaySortedByNameAscending = new Strategy_ShowEntries_Class(Strategy_ShowEntries_Class.SortOptions.ByName, false);
            displaySortedByNameAscending.ShowEntries(entries);

            Strategy_ShowEntries_Class displaySortedByAgeAscending;
            displaySortedByAgeAscending = new Strategy_ShowEntries_Class(Strategy_ShowEntries_Class.SortOptions.ByAge, false);
            displaySortedByAgeAscending.ShowEntries(entries);

            Strategy_ShowEntries_Class displaySortedByHeightDescending;
            displaySortedByHeightDescending = new Strategy_ShowEntries_Class(Strategy_ShowEntries_Class.SortOptions.ByHeight, true);
            displaySortedByHeightDescending.ShowEntries(entries);

            Console.WriteLine("  Done.");
        }

Python

def Strategy_Exercise():
    print()
    print("Strategy Exercise")

    displaySortedByNameAscending = Strategy_ShowEntries_Class(SortOptions.ByName, False)
    displaySortedByNameAscending.ShowEntries(entries)

    displaySortedByAgeAscending = Strategy_ShowEntries_Class(SortOptions.ByAge, False)
    displaySortedByAgeAscending.ShowEntries(entries)

    displaySortedByHeightDescending  = Strategy_ShowEntries_Class(SortOptions.ByHeight, True)
    displaySortedByHeightDescending.ShowEntries(entries)

    print("  Done.")

C

void Strategy_Exercise(void)
{
    printf("\nStrategy Exercise\n");

    size_t numEntries = sizeof(entries) / sizeof(entries[0]);
    int* sortIndices = malloc(numEntries * sizeof(int)); // These are sortable indices into entries
    if (sortIndices != NULL)
    {
        for (int index = 0; index < (int)numEntries; index++)
        {
            sortIndices[index] = index;
        }

        SortStrategy sortStrategy = { 0 };

        SortStrategy_Initialize(&sortStrategy, Sort_ByName, false);
        Sort_Entries(entries, numEntries, sortIndices, &sortStrategy);
        Display_Entries(entries, numEntries, sortIndices, &sortStrategy);

        SortStrategy_Initialize(&sortStrategy, Sort_ByAge, false);
        Sort_Entries(entries, numEntries, sortIndices, &sortStrategy);
        Display_Entries(entries, numEntries, sortIndices, &sortStrategy);

        SortStrategy_Initialize(&sortStrategy, Sort_ByHeight, true);
        Sort_Entries(entries, numEntries, sortIndices, &sortStrategy);
        Display_Entries(entries, numEntries, sortIndices, &sortStrategy);

        free(sortIndices);
    }
    else
    {
        printf("  Error!  Out of memory creating array of indices to sort on!\n");
    }

    printf("  Done.\n");
}

RUST

(Apologies. Doxygen does not understand Rust syntax and therefore cannot colorize the code.)

pub fn strategy_exercise() -> Result<(), String> {
    println!("");
    println!("Strategy Exercise");

    let entries = create_entries();

    let display_name_ascending = StrategyShowEntries::new(SortOptions::ByName, false);
    display_name_ascending.show_entries(&entries);

    let display_age_ascending = StrategyShowEntries::new(SortOptions::ByAge, false);
    display_age_ascending.show_entries(&entries);

    let display_name_ascending = StrategyShowEntries::new(SortOptions::ByHeight, true);
    display_name_ascending.show_entries(&entries);

    println!("  Done.");

    Ok(())
}
