Visitor Pattern

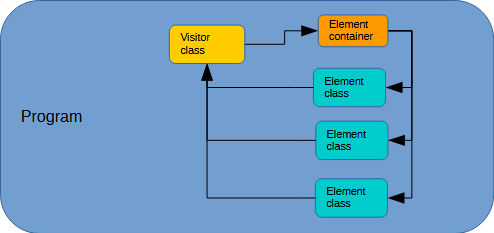

Diagram of the visitor pattern

The Visitor pattern is a way of separating data from operations where the operations can be applied after the list of data is created all while leaving the data and operations as objects. The visitor pattern works best where the number of data classes changes very infrequently. This is because the data classes and associated Visitor class must be engineered to support the Visitor pattern.

The Visitor pattern is a way to use operations on or with a collection of data classes without changing the data classes themselves. The data classes are set up to support a visitor class and from then on can support any visitor that derives from that visitor class.

All Visitor classes derive from a known Visitor base class provided by the data class implementation. This is a consequence of the fact that the data class must support visitors so it must dictate the interface to the visitors.

The data can be organized in a flat list or in a hierarchical tree. The root of the list or tree is responsible for making sure a given visitor instance visits all the elements. At the core of the Visitor pattern are the following two methods.

The data classes implement an "accept" method like the following (the name "accept" is convention only):

class SomeDataType : public ISupportVisitors
{
public:
    void accept(Visitor visitor)
    {
        visitor.VisitSomeDataType(this);
    }
};

All data elements, including the root of the data list or tree, inherits from the ISupportVisitors interface, which declares the accept() method and therefore must be implemented in every data class. The idea is for the visitor to be given the concrete class representing a specific data type, so the visitor can access the data type.

The Visitor implements one or more "visit" methods, one for each data class:

class SomeVisitor : public VisitorBase
{
public:
    void visitSomeDataType(SomeDataType data)
    {
        // Do something to or with the data object.
    }
};

The key to making this work is for all visitors to inherit from one base class where each of the VisitXXX() methods (one for each data type) does nothing but can be overridden in the derived class to take some action. Here is an example base class for all visitors:

class VisitorBase
{
public:
    virtual void visitSomeDataType(SomeDataType* data) {}
    virtual void visitSomeOtherDataType(SomeOtherDataType* data) {}
    virtual void visitSomeThirdDataType(SomeThirdDataType* data) {}
    // etc.
};

The derived Visitor class would override only the method or methods they are interested in.

Note: It is possible to use visit(SomeDataType* data(), visit(SomeOtherDataType* data)(), etc., if the programming language being used supports overloaded methods. Which approach to use is a matter of style and preference.

Adding new data types requires adding a new VisitXXX() method to the Visitor base class; this is why the recommendation to use the Visitor pattern only when the data types are going to change infrequently.

How to Use

Links to the key Visitor classes and interfaces or functions

C++	C#	Python	C
Visitors that Visit Elements
Visitor base class	Visitor base class	Visitor base class	<Not Applicable>
OrderVisitor class	OrderVisitor class	OrderVisitor class	OrderVisitor structure OrderVisitor_VisitShop() Village_VisitShop()
Elements to be Visited
Visitor_Shop base class	Visitor_Shop base class	Visitor_Shop base class	Visitor_Shop structure
Visitor_Restaurant example class	Visitor_Restaurant example class	Visitor_Restaurant	Visitor_Shop structure

The example provided here shows a C++, a C#, Python, and C version of the same visitor pattern. However, the C version is all functions and structures.

For C, the entry point for visiting shops is Village_VisitShop(), which loops over all shops and calls OrderVisitor_VisitShop() with each shop in turn. There are no structures representing types of shops so the Visitor_Shop structure represents all shops. OrderVisitor_VisitShop() ignores any store that doesn't sell the requested items.

C++

    void Visitor_Exercise()
    {
        std::cout << std::endl;
        std::cout << "Visitor Exercise" << std::endl;

        std::cout << "  Creating Village" << std::endl;
        std::unique_ptr<Visitor_Village> village = std::make_unique<Visitor_Village>();
        village->LoadVillage();

        OrderVisitor visitor(StringList{ "hamburger" });
        std::cout
            << Helpers::formatstring("  Ordering a hamburger from a shop in the %s",
                village->Name.c_str())
            << std::endl;
        // Visit all shops and place an order for a hamburger at the shop
        // that sells them.  We don't know which shop it is and we don't
        // need to know until we receive the order.
        village->Accept(&visitor);
        if (!visitor.ItemsReceived.empty())
        {
            // We are expecting only a single item
            std::cout
                << Helpers::formatstring("  We received a %s from %s.",
                    visitor.ItemsReceived[0].c_str(),
                    visitor.ShopNameReceivedFrom.c_str())
                << std::endl;
        }
        else
        {
            std::cout << "  Failed to receive a hamburger" << std::endl;
        }

        std::cout << "  Done." << std::endl;
    }

C#

        public void Run()
        {
            Console.WriteLine();
            Console.WriteLine("Visitor Exercise");

            Console.WriteLine("  Creating Village");
            Village village = new Village();
            village.LoadVillage();

            OrderVisitor visitor = new OrderVisitor(new string[] { "hamburger" });
            Console.WriteLine("  Ordering a hamburger from a shop in the {0}", village.Name);
            // Visit all shops and place an order for a hamburger at the shop
            // that sells them.  We don't know which shop it is and we don't
            // need to know until we receive the order.
            village.Accept(visitor);
            if (visitor.ItemsReceived.Count > 0)
            {
                // We are expecting only a single item
                Console.WriteLine("  We received a {0} from {1}.",
                    visitor.ItemsReceived[0], visitor.ShopNameReceivedFrom);
            }
            else
            {
                Console.WriteLine("  Failed to receive a hamburger");
            }

            Console.WriteLine("  Done.");
        }

Python

def Visitor_Exercise():
    print()
    print("Visitor Exercise")

    print("  Creating Village")
    village = Visitor_Village()
    village.LoadVillage()

    visitor = OrderVisitor([ "hamburger" ])
    print("  Ordering a hamburger from a shop in the {0}".format(village.Name))

    # Visit all shops and place an order for a hamburger at the shop
    # that sells them.  We don't know which shop it is and we don't
    # need to know until we receive the order.
    village.Accept(visitor)
    if visitor.ItemsReceived:
        # We are expecting only a single item
        print("  We received a {0} from {1}.".format(visitor.ItemsReceived[0], visitor.ShopNameReceivedFrom))
    else:
        print("  Failed to receive a {0}".format(visitor.ItemsToOrder[0]))

    print("  Done.")

C

void Visitor_Exercise(void)
{
    printf("\nVisitor Exercise\n");

    printf("  Creating Village\n");

    Village village;
    Village_Initialize(&village);
    bool success = Village_Load(&village);
    if (success)
    {
        OrderVisitor visitor;
        OrderVisitor_Initialize(&visitor);
        success = ConstStringList_AddString(&visitor.ItemsToOrder, "hamburger");
        if (success)
        {
            printf("  Ordering a hamburger from a shop in the %s\n", village.Name);
            // Visit all shops and place an order for a hamburger at the shop
            // that sells them.  We don't know which shop it is and we don't
            // need to know until we receive the order.
            success = Village_VisitShop(&village, &visitor);
            if (success)
            {
                if (visitor.ItemsReceived.strings_count != 0)
                {
                    // We are expecting only a single item
                    printf("  We received a %s from %s.\n",
                            visitor.ItemsReceived.strings[0],
                        visitor.ShopNameReceivedFrom);
                }
                else
                {
                    printf("  Failed to receive a hamburger\n");
                }

            }
        }
        else
        {
            printf("  Error!  Out of memory condition adding item to list of things to order!\n");
        }
        OrderVisitor_Clear(&visitor);

    }
    else
    {
        printf("  Error!  Out of memory loading the village!\n");
    }

    Village_Clear(&village);

    printf("  Done.\n");
}

RUST

(Apologies. Doxygen does not understand Rust syntax and therefore cannot colorize the code.)

pub fn visitor_exercise() -> Result<(), String> {
    println!("");
    println!("Visitor Exercise");

    let mut village = Village::new();
    village.load();

    let mut order = OrderVisitor::new(&vec!["hamburger".to_string()]);
    println!("  Ordering a hamburger from a shop in the {0}", village.name);
    village.visit(&mut order);

    if !order.items_received.is_empty() {
        // We are expecting only a single item
        println!("  We received a {0} from {1}.",
                order.items_received[0], order.shop_name_received_from);
    } else {
        println!("  Failed to receive a hamburger");
    }

    println!("  Done.");

    Ok(())
}
