Declaration of the Command structure and associated functions as used in the Command Pattern. More...

#include <stdlib.h>
#include "Command_TextObject.h"

Include dependency graph for Command_Command.h:

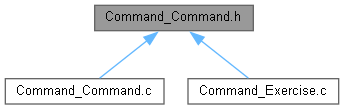

This graph shows which files directly or indirectly include this file:

Classes
struct	Command
	Represents an operation that can be applied to a Command_TextObject. Can hold one of two kinds of operations, one that takes no additional parameters and one that takes two additional string parameters. More...

Macros
#define	__COMMAND_OBJECTS_H__

Typedefs
typedef void(*	two_parameter_operation) (Command_TextObject source, const char argument1, const char *argument2)
	Alias for a function type representing an operation applied to a Command_TextObject using two parameters.

typedef void(*	no_parameter_operation) (Command_TextObject *source)
	Alias for a function type representing an operation applied to a Command_TextObject that uses no additional arguments.

typedef struct Command	Command
	Represents an operation that can be applied to a Command_TextObject. Can hold one of two kinds of operations, one that takes no additional parameters and one that takes two additional string parameters.

Functions
Command *	Command_Create_Two_Parameters (const char commandName, Command_TextObject receiver, two_parameter_operation operation, const char arg1, const char arg2)
	Create a new Command object with the given parameters, creating a command that uses two additional parameters.

Command *	Command_Create_No_Parameters (const char commandName, Command_TextObject receiver, no_parameter_operation operation)
	Create a new Command object with the given parameters, creating a command that uses no additional parameters.

void	Command_Destroy (Command *commandObject)
	Destroy the given command object, releasing it and any associated resources.

void	Command_Execute (Command *commandObject)
	Execute the given command on the Command_TextObject it knows about.

const char *	Command_ToString (Command *commandObject)
	Convert the given command object to a string representation.

Detailed Description

Declaration of the Command structure and associated functions as used in the Command Pattern.

Definition in file Command_Command.h.

Macro Definition Documentation

◆ __COMMAND_OBJECTS_H__

#define __COMMAND_OBJECTS_H__

Definition at line 8 of file Command_Command.h.

Typedef Documentation

◆ Command

typedef struct Command Command

Represents an operation that can be applied to a Command_TextObject. Can hold one of two kinds of operations, one that takes no additional parameters and one that takes two additional string parameters.

In C, this is implemented with function pointers that implement the actual operations. Each command can have only one of two function pointers set at a time; this is handled in the Command_Create_Two_Parameters() and Command_Create_No_Parameters() functions.

◆ no_parameter_operation

typedef void(* no_parameter_operation) (Command_TextObject *source)

Alias for a function type representing an operation applied to a Command_TextObject that uses no additional arguments.

Parameters

source Command_TextObject to affect

Definition at line 29 of file Command_Command.h.

◆ two_parameter_operation

typedef void(* two_parameter_operation) (Command_TextObject *source, const char *argument1, const char *argument2)

Alias for a function type representing an operation applied to a Command_TextObject using two parameters.

Parameters

source	Command_TextObject to affect
argument1	First argument for the operation.
argument2	Second argument for the operation.

Definition at line 22 of file Command_Command.h.

Function Documentation

◆ Command_Create_No_Parameters()

Command * Command_Create_No_Parameters	(	const char *	commandName,
		Command_TextObject *	receiver,
		no_parameter_operation	operation
	)

Create a new Command object with the given parameters, creating a command that uses no additional parameters.

Parameters

commandName	The name of the command (for display purposes).
receiver	The target or receiver of the command operation.
operation	The function to call to perform the command.

Returns: Returns a new Command object if successful; returns NULL if out of memory

Definition at line 33 of file Command_Command.c.

References Command::commandName, Command::operation_no_parameters, and Command::receiver.

Referenced by Command_ApplyReverseCommand().

◆ Command_Create_Two_Parameters()

Command * Command_Create_Two_Parameters	(	const char *	commandName,
		Command_TextObject *	receiver,
		two_parameter_operation	operation,
		const char *	arg1,
		const char *	arg2
	)

Create a new Command object with the given parameters, creating a command that uses two additional parameters.

Parameters

commandName	The name of the command (for display purposes).
receiver	The target or receiver of the command operation.
operation	The function to call to perform the command.
arg1	The first argument to pass to the command function.
arg2	The second argument to pass to the command function.

Returns: Returns a new Command object if successful; returns NULL if out of memory

Definition at line 16 of file Command_Command.c.

References Command::argument1, Command::argument2, Command::commandName, Command::operation_two_parameters, and Command::receiver.

Referenced by Command_ApplyReplaceCommand().

◆ Command_Destroy()

void Command_Destroy ( Command * commandObject )

Destroy the given command object, releasing it and any associated resources.

Parameters

commandObject The Command object to be destroyed. After this function returns, the pointer is no longer valid

Definition at line 48 of file Command_Command.c.

Referenced by Command_Undo().

◆ Command_Execute()

void Command_Execute ( Command * commandObject )

Execute the given command on the Command_TextObject it knows about.

Parameters

commandObject The Command object to be executed.

Definition at line 56 of file Command_Command.c.

References Command::argument1, Command::argument2, Command::operation_no_parameters, Command::operation_two_parameters, and Command::receiver.

Referenced by Command_Save_And_Execute(), and Command_Undo().

◆ Command_ToString()

const char * Command_ToString ( Command * commandObject )

Convert the given command object to a string representation.

Parameters

commandObject The Command to be rendered as a string.

Returns: A string containing the representation of the command.

Definition at line 74 of file Command_Command.c.

References Command::argument1, Command::argument2, Command::commandName, Command::operation_no_parameters, and Command::operation_two_parameters.

Referenced by Command_ApplyReplaceCommand(), Command_ApplyReverseCommand(), and Command_Undo().
