Implementation of the Memento_Exercise() function as used in the Memento Pattern. More...

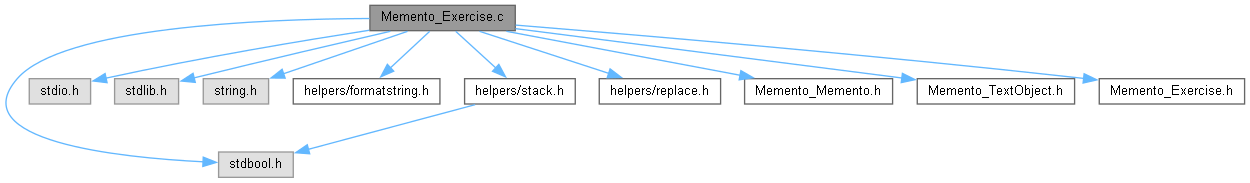

#include <stdbool.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "helpers/formatstring.h"
#include "helpers/stack.h"
#include "helpers/replace.h"
#include "Memento_Memento.h"
#include "Memento_TextObject.h"
#include "Memento_Exercise.h"
Go to the source code of this file.
Functions | |
static void | Memento_SaveForUndo (Memento_TextObject *text, const char *operation) |
Take a snapshot of the given text object associated with the name of given operation. | |
static void | Memento_Operation_Replace (Memento_TextObject *source, const char *searchPattern, const char *replaceText) |
An operation to search and replace text in a Memento_TextObject. | |
static void | Memento_Operation_Reverse (Memento_TextObject *source) |
An operation to reverse the characters in the given Memento_TextObject. | |
static void | Memento_Undo (Memento_TextObject *text) |
Perform an undo on the given Command_TextObject, using the mementos in the "global" undo list. If the undo list is empty, nothing happens. | |
static void | Memento_ApplyReplaceOperation (Memento_TextObject *text, const char *searchPattern, const char *replaceText) |
Helper function to replace a pattern with another string in the given Memento_TextObject after adding a snapshot of the text object to the undo list. Finally, it shows off what was done. | |
static void | Memento_ApplyReverseOperation (Memento_TextObject *text) |
Helper function to reverse the order of the characters in the given Memento_TextObject after adding a snapshot of the text object to an undo list. Finally, it shows what was done. | |
void | Memento_Exercise (void) |
Example of using the Memento design pattern. | |
Variables | |
static StackEntry * | _mementoUndoList = NULL |
The list of memento objects that form a series of snapshots in time of a Memento_TextObject. | |
Implementation of the Memento_Exercise() function as used in the Memento Pattern.
Definition in file Memento_Exercise.c.
|
static |
Helper function to replace a pattern with another string in the given Memento_TextObject after adding a snapshot of the text object to the undo list. Finally, it shows off what was done.
text | The Memento_TextObject to affect. |
searchPattern | What to look for in the Memento_TextObject. |
replaceText | What to replace the searchPattern with. |
Definition at line 118 of file Memento_Exercise.c.
References formatstring(), Memento_Operation_Replace(), Memento_SaveForUndo(), and Memento_TextObject_ToString().
Referenced by DesignPatternExamples_cpp::Memento_Exercise(), and Memento_Exercise().
|
static |
Helper function to reverse the order of the characters in the given Memento_TextObject after adding a snapshot of the text object to an undo list. Finally, it shows what was done.
text | The Memento_TextObject to affect. |
Definition at line 144 of file Memento_Exercise.c.
References Memento_Operation_Reverse(), Memento_SaveForUndo(), and Memento_TextObject_ToString().
Referenced by DesignPatternExamples_cpp::Memento_Exercise(), and Memento_Exercise().
void Memento_Exercise | ( | void | ) |
Example of using the Memento design pattern.
In this exercise, the Memento pattern is used to take snapshots of a text object so as to form an undo list of changes to the text object. Undoing an operation means restoring a snapshot of the text object.
The undo list is implemented as a stack of memento objects that each represent a snapshot of the text object taken before each operation is applied. After all operations are applied, the mementos are used to restore the text object in reverse order, effectively undoing each operation in turn.
Compare this to the Command_Exercise() and note that the steps taken there are identical to here (except for method names, of course). The difference lies in how operations are executed and undone. Mementos make the undo process much cleaner and faster since operations do not need to be applied repeatedly to get the text object into a specific state. Specifically, compare Command_Undo() with Memento_Undo(). Also note the differences in the "Memento_ApplyXXOperation()" methods, which more cleanly separate the save from the operation.
Definition at line 180 of file Memento_Exercise.c.
References _mementoUndoList, Memento_ApplyReplaceOperation(), Memento_ApplyReverseOperation(), Memento_TextObject_Create(), Memento_TextObject_Destroy(), Memento_TextObject_ToString(), and Memento_Undo().
|
static |
An operation to search and replace text in a Memento_TextObject.
source | The Memento_TextObject to affect. |
searchPattern | What to look for in the Memento_TextObject. |
replaceText | What to replace the searchPattern with. |
Definition at line 54 of file Memento_Exercise.c.
References Memento_TextObject_GetText(), Memento_TextObject_SetText(), and replace_str().
Referenced by Memento_ApplyReplaceOperation().
|
static |
An operation to reverse the characters in the given Memento_TextObject.
source | The Memento_TextObject to affect. |
Definition at line 71 of file Memento_Exercise.c.
References Memento_TextObject_GetText().
Referenced by Memento_ApplyReverseOperation().
|
static |
Take a snapshot of the given text object associated with the name of given operation.
text | The Memento_TextObject to take a snapshot of. |
operation | A string describing the operation that will be applied after the snapshot is taken. |
Definition at line 35 of file Memento_Exercise.c.
References _mementoUndoList, Memento_Create(), Memento_TextObject_GetText(), and Stack_Push().
Referenced by Memento_ApplyReplaceOperation(), and Memento_ApplyReverseOperation().
|
static |
Perform an undo on the given Command_TextObject, using the mementos in the "global" undo list. If the undo list is empty, nothing happens.
text | The Command_TextObject to affect. |
Definition at line 94 of file Memento_Exercise.c.
References _mementoUndoList, Memento_Destroy(), Memento_TextObject_SetText(), Memento_TextObject_ToString(), Memento::name, Stack_Pop(), and Memento::text.
Referenced by DesignPatternExamples_cpp::Memento_Exercise(), and Memento_Exercise().
|
static |
The list of memento objects that form a series of snapshots in time of a Memento_TextObject.
Definition at line 26 of file Memento_Exercise.c.
Referenced by DesignPatternExamples_cpp::Memento_Exercise(), Memento_Exercise(), Memento_SaveForUndo(), and Memento_Undo().
