Base class that represents a move command. A move command has a name and the command character that represents the command in the initial string of movement commands. More...

#include <Null_Object.h>

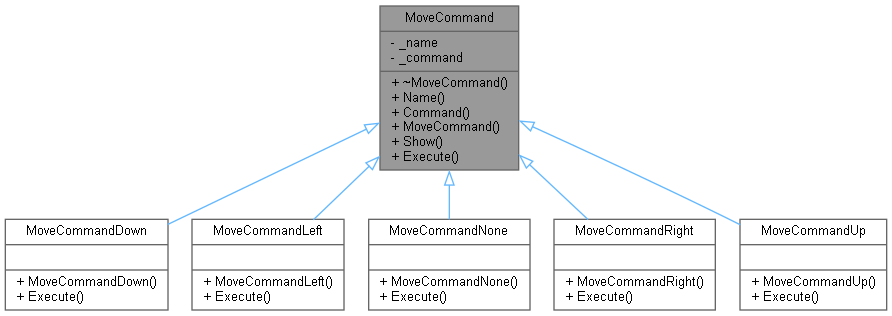

Inheritance diagram for MoveCommand:

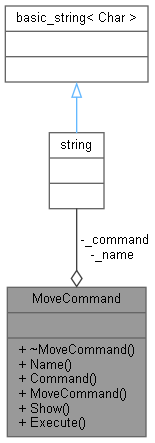

Collaboration diagram for MoveCommand:

Public Types
using	shared_ptr_t = std::shared_ptr< MoveCommand >
	Alias to make it easier to work with a shared pointer.

Public Member Functions
virtual	~MoveCommand ()
	Virtual destructor required for interfaces/base classes.

std::string	Name ()
	Name of the command (assigned in the class constructor).

std::string	Command ()
	The command character from the original list of commands. Used when displaying the commands as opposed to when executing the commands (assigned in the class constructor).

	MoveCommand (std::string command, std::string commandName)
	Constructor.

virtual void	Show ()
	Display the move command and its name followed by a newline.

virtual void	Execute ()=0
	Execute the command. Derived classes must implement this.

Private Attributes
std::string	_name
	Name of the command.

std::string	_command
	The command for controlling movement.

Detailed Description

Base class that represents a move command. A move command has a name and the command character that represents the command in the initial string of movement commands.

Yes, this is a variation of the Command Pattern.

In this example, a move command, when executed, prints "move xxx" on the current line. When displayed, the move command shows the command character followed by the name of the command.

Definition at line 32 of file Null_Object.h.

Member Typedef Documentation

◆ shared_ptr_t

using shared_ptr_t = std::shared_ptr<MoveCommand>

Alias to make it easier to work with a shared pointer.

Definition at line 38 of file Null_Object.h.

Constructor & Destructor Documentation

◆ ~MoveCommand()

virtual ~MoveCommand ( )

inlinevirtual

Virtual destructor required for interfaces/base classes.

Definition at line 55 of file Null_Object.h.

◆ MoveCommand()

MoveCommand	(	std::string	command,
		std::string	commandName
	)

inline

Constructor.

Parameters

command	The character that represents the command in the original move list.
commandName	The name of the command (for display purposes).

Definition at line 81 of file Null_Object.h.

Member Function Documentation

◆ Command()

std::string Command ( )

inline

The command character from the original list of commands. Used when displaying the commands as opposed to when executing the commands (assigned in the class constructor).

Definition at line 70 of file Null_Object.h.

References MoveCommand::_command.
