Represents the mediator between caller, users, and groups. All users and groups are identified by string name. The names are case-sensitive. More...

#include <Mediator_Class.h>

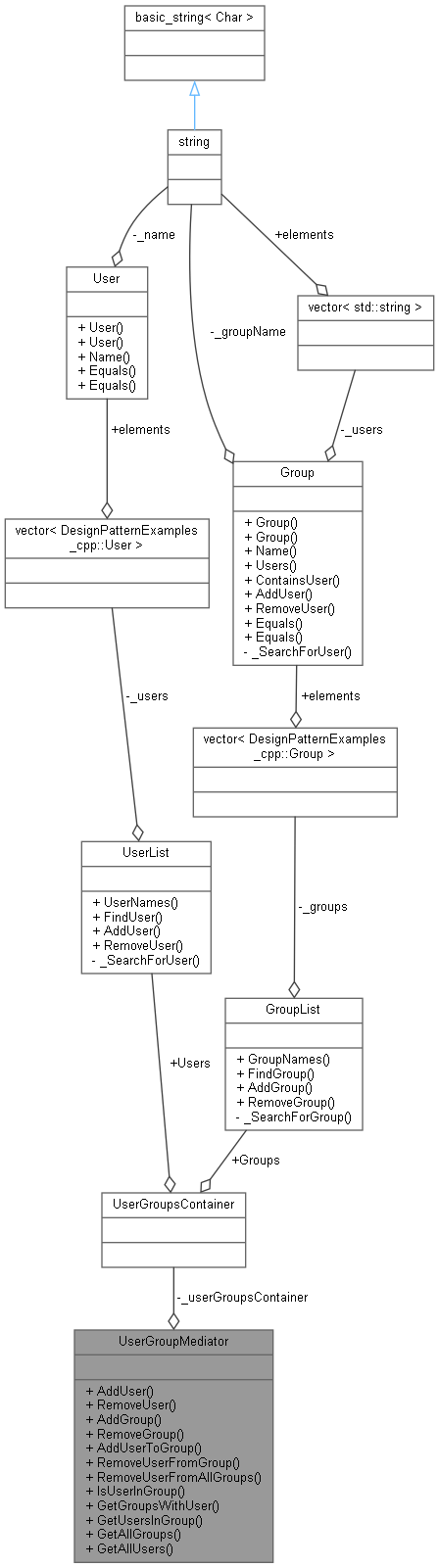

Collaboration diagram for UserGroupMediator:

Public Member Functions
void	AddUser (std::string name)
	Add a user to the list of known users. If the name is already in the list of users, the request to add is ignored.

void	RemoveUser (std::string name)
	Removes the specified user from the list of known users, if the user exists. Also removes the user from all groups.

void	AddGroup (std::string name)
	Add a group to the list of known groups. If the group is already in the list, the request to add is ignored.

void	RemoveGroup (std::string name)
	Remove the specified group from the list of known groups if the group exists.

void	AddUserToGroup (std::string userName, std::string groupName)
	Add the specified user to the specified group. If the user is already in the group, do nothing. The user must exist.

void	RemoveUserFromGroup (std::string userName, std::string groupName)
	Remove the specified user from the specified group.

void	RemoveUserFromAllGroups (std::string userName)
	Remove the specified user from all existing groups.

bool	IsUserInGroup (std::string userName, std::string groupName)
	Determine if the specified user is in the specified group.

StringList	GetGroupsWithUser (std::string userName)
	Retrieve a list of all groups that contain the specified user.

StringList	GetUsersInGroup (std::string groupName)
	Retrieve a list of users in the specified group.

StringList	GetAllGroups ()
	Retrieve a list of all known groups.

StringList	GetAllUsers ()
	Retrieve a list of all known users.

Private Attributes
UserGroupsContainer	_userGroupsContainer

Detailed Description

Represents the mediator between caller, users, and groups. All users and groups are identified by string name. The names are case-sensitive.

Definition at line 45 of file Mediator_Class.h.

Member Function Documentation

◆ AddGroup()

void AddGroup ( std::string name )

inline

Add a group to the list of known groups. If the group is already in the list, the request to add is ignored.

Exceptions

ArgumentNullException The 'name' parameter cannot be null or empty.

Parameters

name	Name of the user to add. Must not be null or empty.

Definition at line 83 of file Mediator_Class.h.

References UserGroupMediator::_userGroupsContainer, GroupList::AddGroup(), and UserGroupsContainer::Groups.

◆ AddUser()

void AddUser ( std::string name )

inline

Add a user to the list of known users. If the name is already in the list of users, the request to add is ignored.

Parameters

name	Name of the user to add. Must not be null or empty.

Exceptions

ArgumentNullException The 'name' parameter cannot be null or empty.

Definition at line 59 of file Mediator_Class.h.

References UserGroupMediator::_userGroupsContainer, UserList::AddUser(), and UserGroupsContainer::Users.

◆ AddUserToGroup()

void AddUserToGroup	(	std::string	userName,
		std::string	groupName
	)

inline

Add the specified user to the specified group. If the user is already in the group, do nothing. The user must exist.

Parameters

userName	Name of user to add. Must be an existing user.
groupName	Name of group to add user to. Must be an existing group.

Exceptions

ArgumentException User or group does not exist.

Definition at line 107 of file Mediator_Class.h.

References UserGroupMediator::_userGroupsContainer, Group::AddUser(), GroupList::FindGroup(), UserList::FindUser(), Helpers::formatstring(), UserGroupsContainer::Groups, and UserGroupsContainer::Users.

Referenced by DesignPatternExamples_cpp::Mediator_Exercise().

◆ GetAllGroups()

StringList GetAllGroups ( )

inline

Retrieve a list of all known groups.

Returns: An array of group names.

Definition at line 280 of file Mediator_Class.h.

References UserGroupMediator::_userGroupsContainer, GroupList::GroupNames(), and UserGroupsContainer::Groups.

Referenced by DesignPatternExamples_cpp::Mediator_Exercise().

◆ GetAllUsers()

StringList GetAllUsers ( )

inline

Retrieve a list of all known users.

Returns: An array of user names.

Definition at line 290 of file Mediator_Class.h.

References UserGroupMediator::_userGroupsContainer, UserList::UserNames(), and UserGroupsContainer::Users.

Referenced by DesignPatternExamples_cpp::Mediator_Exercise().

◆ GetGroupsWithUser()

StringList GetGroupsWithUser ( std::string userName )

inline

Retrieve a list of all groups that contain the specified user.

Parameters

userName Name of the user to look for. Must be an existing user.

Returns: An array of group names containing the user. Array is empty if the user is not found in any group.

Exceptions

ArgumentException User or group does not exist.

Definition at line 231 of file Mediator_Class.h.

References UserGroupMediator::_userGroupsContainer, Group::ContainsUser(), GroupList::FindGroup(), UserList::FindUser(), Helpers::formatstring(), GroupList::GroupNames(), UserGroupsContainer::Groups, and UserGroupsContainer::Users.

Referenced by DesignPatternExamples_cpp::Mediator_Exercise().

◆ GetUsersInGroup()

StringList GetUsersInGroup ( std::string groupName )

inline

Retrieve a list of users in the specified group.

Parameters

groupName Name of the group to examine. Must be an existing group.

Returns: Returns an array of user names. The array can be empty if no users are in the group.

Exceptions

ArgumentException Group does not exist.

Definition at line 263 of file Mediator_Class.h.

References UserGroupMediator::_userGroupsContainer, GroupList::FindGroup(), Helpers::formatstring(), UserGroupsContainer::Groups, and Group::Users().

Referenced by DesignPatternExamples_cpp::Mediator_Exercise().

◆ IsUserInGroup()

bool IsUserInGroup	(	std::string	userName,
		std::string	groupName
	)

inline

Determine if the specified user is in the specified group.

Parameters

userName	Name of user to find. Must be an existing user.
groupName	Name of group to look in. Must be an existing group.

Returns: Returns true if the user is in the group; otherwise, returns false.

Exceptions

ArgumentException User or group does not exist.

Definition at line 199 of file Mediator_Class.h.

References UserGroupMediator::_userGroupsContainer, Group::ContainsUser(), GroupList::FindGroup(), UserList::FindUser(), Helpers::formatstring(), UserGroupsContainer::Groups, and UserGroupsContainer::Users.

Referenced by DesignPatternExamples_cpp::Mediator_Exercise().

◆ RemoveGroup()

void RemoveGroup ( std::string name )

inline

Remove the specified group from the list of known groups if the group exists.

Parameters

name	Name of group to remove.

Definition at line 94 of file Mediator_Class.h.

References UserGroupMediator::_userGroupsContainer, UserGroupsContainer::Groups, and GroupList::RemoveGroup().

◆ RemoveUser()

void RemoveUser ( std::string name )

inline

Removes the specified user from the list of known users, if the user exists. Also removes the user from all groups.

Parameters

name	Name of user to remove.

Definition at line 70 of file Mediator_Class.h.

References UserGroupMediator::_userGroupsContainer, UserList::RemoveUser(), UserGroupMediator::RemoveUserFromAllGroups(), and UserGroupsContainer::Users.

Referenced by DesignPatternExamples_cpp::Mediator_Exercise().

◆ RemoveUserFromAllGroups()

void RemoveUserFromAllGroups ( std::string userName )

inline

Remove the specified user from all existing groups.

Parameters

userName Name of user to remove. Must be an existing user.

Exceptions

ArgumentException User does not exist.

Definition at line 166 of file Mediator_Class.h.

References UserGroupMediator::_userGroupsContainer, Group::ContainsUser(), GroupList::FindGroup(), UserList::FindUser(), Helpers::formatstring(), GroupList::GroupNames(), UserGroupsContainer::Groups, Group::RemoveUser(), and UserGroupsContainer::Users.

Referenced by DesignPatternExamples_cpp::Mediator_Exercise(), and UserGroupMediator::RemoveUser().

◆ RemoveUserFromGroup()

void RemoveUserFromGroup	(	std::string	userName,
		std::string	groupName
	)

inline

Remove the specified user from the specified group.

Parameters

userName	Name of user to remove. Must be an existing user.
groupName	Name of group to remove user from. Must be an existing group.

Exceptions

ArgumentException User or group does not exist.

Definition at line 137 of file Mediator_Class.h.

References UserGroupMediator::_userGroupsContainer, GroupList::FindGroup(), UserList::FindUser(), Helpers::formatstring(), UserGroupsContainer::Groups, Group::RemoveUser(), and UserGroupsContainer::Users.

Referenced by DesignPatternExamples_cpp::Mediator_Exercise().

Member Data Documentation

◆ _userGroupsContainer

UserGroupsContainer _userGroupsContainer

private

Definition at line 50 of file Mediator_Class.h.

Referenced by UserGroupMediator::AddGroup(), UserGroupMediator::AddUser(), UserGroupMediator::AddUserToGroup(), UserGroupMediator::GetAllGroups(), UserGroupMediator::GetAllUsers(), UserGroupMediator::GetGroupsWithUser(), UserGroupMediator::GetUsersInGroup(), UserGroupMediator::IsUserInGroup(), UserGroupMediator::RemoveGroup(), UserGroupMediator::RemoveUser(), UserGroupMediator::RemoveUserFromAllGroups(), and UserGroupMediator::RemoveUserFromGroup().

The documentation for this class was generated from the following file:

Mediator_Class.h
