Represents some kind of system that contains multiple device chains. Part of the Facade pattern example. More...

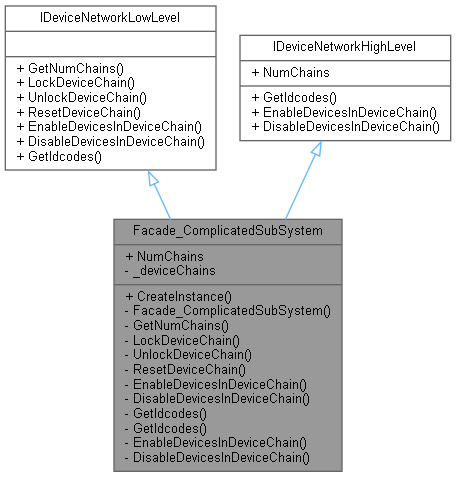

Inheritance diagram for Facade_ComplicatedSubSystem:

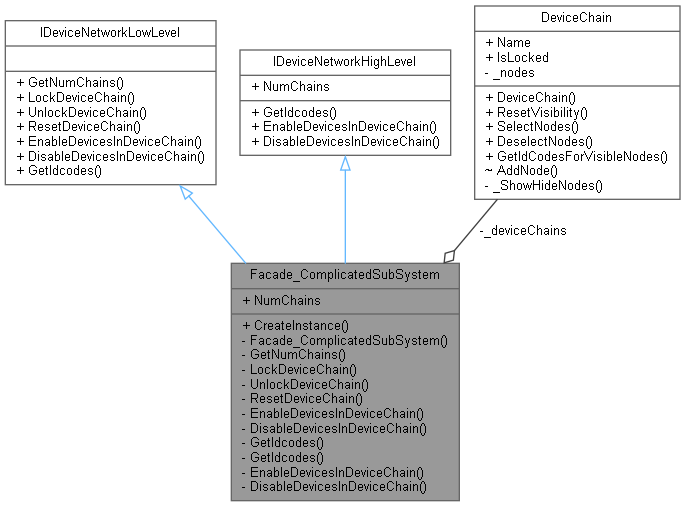

Collaboration diagram for Facade_ComplicatedSubSystem:

Static Public Member Functions
static IDeviceNetworkLowLevel	CreateInstance ()
	Class factory for the sub-system class.

Properties
int IDeviceNetworkHighLevel.	NumChains `[get]`
	The number of device chains available from the sub-system.

Properties inherited from IDeviceNetworkHighLevel
int	NumChains `[get]`
	The number of device chains available from the sub-system.

Private Member Functions
	Facade_ComplicatedSubSystem ()
	(private) Constructor. Sets up the device chains.

int IDeviceNetworkLowLevel.	GetNumChains ()
	Retrieve the number of device chains.

bool IDeviceNetworkLowLevel.	LockDeviceChain (int chainIndex)
	Lock the specified device chain to indicate exclusive access is desired.

bool IDeviceNetworkLowLevel.	UnlockDeviceChain (int chainIndex)
	Unlock the specified device chain to indicate exclusive access is no longer desired.

void IDeviceNetworkLowLevel.	ResetDeviceChain (int chainIndex)
	Reset the visibility of all devices on the given device chain so that all devices except the first are not visible.

void IDeviceNetworkLowLevel.	EnableDevicesInDeviceChain (int chainIndex, uint deviceselectMask)
	Select one or more devices in the given device chain so those devices are visible.

void IDeviceNetworkLowLevel.	DisableDevicesInDeviceChain (int chainIndex, uint deviceselectMask)
	Deselect one or more devices in the given device chain so those devices are no longer visible.

uint[] IDeviceNetworkLowLevel.	GetIdcodes (int chainIndex)
	Retrieve a list of idcodes for each device in the given device chain that is visible.

uint[] IDeviceNetworkHighLevel.	GetIdcodes (int chainIndex)
	Returns a list of all idcodes from all selected devices in the given device chain.

void IDeviceNetworkHighLevel.	EnableDevicesInDeviceChain (int chainIndex, uint selectMask)
	Make visible certain devices in the given device chain. The selectMask value has a bit set for each device device to make visible.

void IDeviceNetworkHighLevel.	DisableDevicesInDeviceChain (int chainIndex)
	Resets the given device chain so that all devices except the device controller is no longer visible.

Private Attributes
DeviceChain[]	_deviceChains = { new DeviceChain("CHAIN0"), new DeviceChain("CHAIN1") }
	The list of device chains. In this case, there are two.

Additional Inherited Members
int	GetNumChains ()
	Retrieve the number of device chains available in the network.

bool	LockDeviceChain (int chainIndex)
	Lock the specified device chain for exclusive access.

bool	UnlockDeviceChain (int chainIndex)
	Unlock the specified device chain to release exclusive access.

void	ResetDeviceChain (int chainIndex)
	Reset the visibility of all devices on the specified device chain.

void	EnableDevicesInDeviceChain (int chainIndex, uint devicesSelectMask)
	Make visible the specified devices on the specified device chain.

void	DisableDevicesInDeviceChain (int chainIndex, uint devicesSelectMask)
	Make invisible the specified devices on the specified device chain.

uint[]	GetIdcodes (int chainIndex)
	Retrieve a list of idcodes of all visible devices in the given device chain.

uint[]	GetIdcodes (int chainIndex)
	Returns a list of all idcodes from all selected devices in the given device chain.

void	EnableDevicesInDeviceChain (int chainIndex, uint selectMask)
	Make visible certain devices in the given device chain. The selectMask value has a bit set for each TAP device to make visible.

void	DisableDevicesInDeviceChain (int chainIndex)
	Resets the given device chain so that all devices except the TAP controller is no longer visible.

Detailed Description

Represents some kind of system that contains multiple device chains. Part of the Facade pattern example.

The following operations are available:

GetNumChains()
LockDevices()
UnlockDevices()
ResetDevices()
SelectDevices()
DeselectDevices()
GetIdcodes()

Definition at line 253 of file Facade_ComplicatedSubSystem.cs.

Constructor & Destructor Documentation

◆ Facade_ComplicatedSubSystem()

Facade_ComplicatedSubSystem ( )

inlineprivate

(private) Constructor. Sets up the device chains.

Definition at line 272 of file Facade_ComplicatedSubSystem.cs.

References Facade_ComplicatedSubSystem._deviceChains, and DeviceChain.AddNode().

Referenced by Facade_ComplicatedSubSystem.CreateInstance().

Member Function Documentation

◆ CreateInstance()

static IDeviceNetworkLowLevel CreateInstance ( )

inlinestatic

Class factory for the sub-system class.

Returns: Returns a new instance of the class.

Definition at line 264 of file Facade_ComplicatedSubSystem.cs.

References Facade_ComplicatedSubSystem.Facade_ComplicatedSubSystem().

Referenced by Facade_ComplicatedSubSystemFactory.CreateHighLevelInstance(), and Facade_ComplicatedSubSystemFactory.CreateLowLevelInstance().

◆ DisableDevicesInDeviceChain() [1/2]

void IDeviceNetworkHighLevel. DisableDevicesInDeviceChain ( int chainIndex )

inlineprivate

Resets the given device chain so that all devices except the device controller is no longer visible.

Parameters

chainIndex Index of the device chain to access (0..NumChains-1).

Implements IDeviceNetworkHighLevel.

Definition at line 468 of file Facade_ComplicatedSubSystem.cs.

References Facade_ComplicatedSubSystem.LockDeviceChain().

◆ DisableDevicesInDeviceChain() [2/2]

void IDeviceNetworkLowLevel. DisableDevicesInDeviceChain	(	int	chainIndex,
		uint	deviceselectMask
	)

inlineprivate

Deselect one or more devices in the given device chain so those devices are no longer visible.

Parameters

chainIndex	The index of the device chain to access (0..n-1).
deviceselectMask	A bit mask indicating which devices to make invisible, with bit 0 corresponding to the first device, bit 1 corresponding to the second device, etc. Bit 0 is ignored as the first device is always visible.

Implements IDeviceNetworkLowLevel.

Definition at line 382 of file Facade_ComplicatedSubSystem.cs.

References Facade_ComplicatedSubSystem._deviceChains, and DeviceChain.DeselectNodes().

◆ EnableDevicesInDeviceChain() [1/2]

void IDeviceNetworkLowLevel. EnableDevicesInDeviceChain	(	int	chainIndex,
		uint	deviceselectMask
	)

inlineprivate

Select one or more devices in the given device chain so those devices are visible.

Parameters

chainIndex	The index of the device chain to access (0..n-1).
deviceselectMask	A bit mask indicating which devices to make visible, with bit 0 corresponding to the first device, bit 1 corresponding to the second device, etc. Bit 0 is ignored as the first device is always visible.

Implements IDeviceNetworkLowLevel.

Definition at line 365 of file Facade_ComplicatedSubSystem.cs.

References Facade_ComplicatedSubSystem._deviceChains, and DeviceChain.SelectNodes().

◆ EnableDevicesInDeviceChain() [2/2]

void IDeviceNetworkHighLevel. EnableDevicesInDeviceChain	(	int	chainIndex,
		uint	selectMask
	)

inlineprivate

Make visible certain devices in the given device chain. The selectMask value has a bit set for each device device to make visible.

Parameters

chainIndex	Index of the device chain to access (0..NumChains-1).
selectMask	A bit mask where each bit corresponds to a device, up to the number of devices in the given device chain. Bit 0 is ignored as the first device is always visible.

Implements IDeviceNetworkLowLevel.

Definition at line 454 of file Facade_ComplicatedSubSystem.cs.

References Facade_ComplicatedSubSystem.LockDeviceChain().

◆ GetIdcodes() [1/2]

uint[] IDeviceNetworkLowLevel. GetIdcodes ( int chainIndex )

inlineprivate

Retrieve a list of idcodes for each device in the given device chain that is visible.

Parameters

chainIndex The index of the device chain to access (0..n-1).

Returns: An array of uints holding the idcodes for each device, with the first idcode corresponding to the first visible device. Can be empty if the chainIndex parameter is out of bounds.

Implements IDeviceNetworkLowLevel.

Definition at line 398 of file Facade_ComplicatedSubSystem.cs.

References Facade_ComplicatedSubSystem._deviceChains, and DeviceChain.GetIdCodesForVisibleNodes().

◆ GetIdcodes() [2/2]

uint[] IDeviceNetworkHighLevel. GetIdcodes ( int chainIndex )

inlineprivate

Returns a list of all idcodes from all selected devices in the given device chain.

Parameters

chainIndex Index of the device chain to access (0..NumChains-1).

Returns: An array holding the idcodes of all visible devices in the given chain. Can be empty if the chainIndex parameter is out of bounds.

Implements IDeviceNetworkLowLevel.

Definition at line 434 of file Facade_ComplicatedSubSystem.cs.

References Facade_ComplicatedSubSystem.LockDeviceChain().

◆ GetNumChains()

int IDeviceNetworkLowLevel. GetNumChains ( )

inlineprivate

Retrieve the number of device chains.

Returns: Returns the number of device chains

Implements IDeviceNetworkLowLevel.

Definition at line 292 of file Facade_ComplicatedSubSystem.cs.

References Facade_ComplicatedSubSystem._deviceChains.

◆ LockDeviceChain()

bool IDeviceNetworkLowLevel. LockDeviceChain ( int chainIndex )

inlineprivate

Lock the specified device chain to indicate exclusive access is desired.

Parameters

chainIndex The index of the device chain to access (0..n-1).

Returns: Returns true if the device chain was successfully locked; otherwise, returns false (chain index out of range or the device chain is already locked)

Implements IDeviceNetworkLowLevel.

Definition at line 304 of file Facade_ComplicatedSubSystem.cs.

References Facade_ComplicatedSubSystem._deviceChains, and DeviceChain.IsLocked.

Referenced by Facade_ComplicatedSubSystem.DisableDevicesInDeviceChain(), Facade_ComplicatedSubSystem.EnableDevicesInDeviceChain(), and Facade_ComplicatedSubSystem.GetIdcodes().

◆ ResetDeviceChain()

void IDeviceNetworkLowLevel. ResetDeviceChain ( int chainIndex )

inlineprivate

Reset the visibility of all devices on the given device chain so that all devices except the first are not visible.

Parameters

chainIndex The index of the device chain to access (0..n-1).

Implements IDeviceNetworkLowLevel.

Definition at line 348 of file Facade_ComplicatedSubSystem.cs.

References Facade_ComplicatedSubSystem._deviceChains, and DeviceChain.ResetVisibility().

◆ UnlockDeviceChain()

bool IDeviceNetworkLowLevel. UnlockDeviceChain ( int chainIndex )

inlineprivate

Unlock the specified device chain to indicate exclusive access is no longer desired.

Parameters

chainIndex The index of the device chain to access (0..n-1).

Returns: Returns true if the device chain was successfully unlocked; otherwise, returns false (chain index out of range or the device chain is already unlocked)

Implements IDeviceNetworkLowLevel.

Definition at line 327 of file Facade_ComplicatedSubSystem.cs.

References Facade_ComplicatedSubSystem._deviceChains, and DeviceChain.IsLocked.
