Declaration of the "low-level" memory block read/write functions that are provided in a separate DLL called Adapter_BackEnd.dll, which is wrapped or adapted to by the various programming languages as part of the Adapter Pattern examples. More...

#include <stdint.h>

Include dependency graph for Adapter_BackEnd.h:

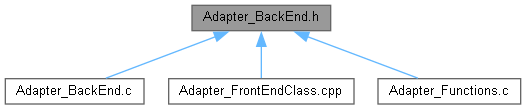

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	__ADAPTER_BACKENDFUNCTIONS_H__

#define	DllExport

Enumerations
enum	{ DDR_MAX_OFFSET = 32 , DDR_INVALID_HANDLE = -1 }

enum	DDR_ErrorCode { DDR_ErrorCode_Success = 0 , DDR_ErrorCode_Block_Already_Opened = 1 , DDR_ErrorCode_Block_Not_Opened = 2 , DDR_ErrorCode_Invalid_Block_Name = 3 , DDR_ErrorCode_Invalid_Handle = 4 , DDR_ErrorCode_Invalid_Offset = 5 , DDR_ErrorCode_Null_Argument = 6 }
	Represents the possible errors that can be returned from the memory block access functions. More...

Functions
DllExport DDR_ErrorCode	DDR_OpenMemoryBlock (const char blockName, int dataHandle)
	Open access to a memory block for exclusive use, given the name of the memory block.

DllExport DDR_ErrorCode	DDR_CloseMemoryBlock (int dataHandle)
	Close access to a previously opened memory block, thus releasing it for others to open.

DllExport DDR_ErrorCode	DDR_GetMemorySize (int dataHandle, int *memorySizeInChunks)
	Retrieve the number of chunks in the memory block indicated by the handle to the successfully opened memory block.

DllExport DDR_ErrorCode	DDR_GetDataChunk (int dataHandle, int chunkOffset, uint32_t *value)
	Read a single 32-bit value at the given offset in the memory block indicated by the specified handle.

DllExport DDR_ErrorCode	DDR_SetDataChunk (int dataHandle, int chunkOffset, uint32_t value)
	Writes a single 32-bit value to the given offset in the memory block indicated by the specified handle.

Variables
DllExport const char *	BLOCK_NAME_0
	Name of the first block.

DllExport const char *	BLOCK_NAME_1
	Name of the second block.

DllExport const char *	BLOCK_NAME_2
	Name of the third block.

Detailed Description

Declaration of the "low-level" memory block read/write functions that are provided in a separate DLL called Adapter_BackEnd.dll, which is wrapped or adapted to by the various programming languages as part of the Adapter Pattern examples.

Definition in file Adapter_BackEnd.h.

Macro Definition Documentation

◆ __ADAPTER_BACKENDFUNCTIONS_H__

#define __ADAPTER_BACKENDFUNCTIONS_H__

Definition at line 10 of file Adapter_BackEnd.h.

◆ DllExport

#define DllExport

Definition at line 21 of file Adapter_BackEnd.h.

Enumeration Type Documentation

◆ anonymous enum

anonymous enum

Enumerator
DDR_MAX_OFFSET	All offsets must from 0 to 1 less than this value.
DDR_INVALID_HANDLE	Value indicating the handle is invalid.

Definition at line 38 of file Adapter_BackEnd.h.

◆ DDR_ErrorCode

enum DDR_ErrorCode

Represents the possible errors that can be returned from the memory block access functions.

Enumerator
DDR_ErrorCode_Success	Operation succeeded.
DDR_ErrorCode_Block_Already_Opened	Memory block is already open and cannot be opened again.
DDR_ErrorCode_Block_Not_Opened	Memory block is closed and cannot be accessed.
DDR_ErrorCode_Invalid_Block_Name	The given name is not a recognized memory block name.
DDR_ErrorCode_Invalid_Handle	The handle argument does not correspond to a valid open memory block.
DDR_ErrorCode_Invalid_Offset	The given offset is out of bounds.
DDR_ErrorCode_Null_Argument	The block name pointer or return handle pointer argument is NULL.

Definition at line 48 of file Adapter_BackEnd.h.

Function Documentation

◆ DDR_CloseMemoryBlock()

DllExport DDR_ErrorCode DDR_CloseMemoryBlock ( int dataHandle )

Close access to a previously opened memory block, thus releasing it for others to open.

Parameters

dataHandle Handle to a previously opened memory block as obtained from the DDR_OpenMemoryBlock() function.

Returns: Returns a value from the DDR_ErrorCode enumeration indicating success or failure.

Definition at line 150 of file Adapter_BackEnd.c.

References _ConvertHandleToBlockIndex(), DDR_ErrorCode_Block_Not_Opened, DDR_ErrorCode_Invalid_Handle, DDR_ErrorCode_Success, MemoryBlock::locked, and memory_blocks.

Referenced by Adapter_CloseMemory(), and DataReaderWriter::~DataReaderWriter().

◆ DDR_GetDataChunk()

DllExport DDR_ErrorCode DDR_GetDataChunk	(	int	dataHandle,
		int	chunkOffset,
		uint32_t *	value
	)

Read a single 32-bit value at the given offset in the memory block indicated by the specified handle.

Parameters

dataHandle	Handle to a previously opened memory block as obtained from the DDR_OpenMemoryBlock() function.
chunkOffset	Offset into the memory block from which to get the value (range is 0 to DDR_MAX_OFFSET-1).
value	Returns the requested value.

Returns: Returns a value from the DDR_ErrorCode enumeration indicating success or failure.

Definition at line 191 of file Adapter_BackEnd.c.

References _ConvertHandleToBlockIndex(), _IsValidOffset(), MemoryBlock::data, DDR_ErrorCode_Block_Not_Opened, DDR_ErrorCode_Invalid_Offset, DDR_ErrorCode_Null_Argument, DDR_ErrorCode_Success, and memory_blocks.

Referenced by Adapter_ReadMemory(), Adapter_WriteMemory(), DataReaderWriter::Read(), and DataReaderWriter::Write().

◆ DDR_GetMemorySize()

DllExport DDR_ErrorCode DDR_GetMemorySize	(	int	dataHandle,
		int *	memorySizeInChunks
	)

Retrieve the number of chunks in the memory block indicated by the handle to the successfully opened memory block.

Parameters

dataHandle	Handle to a previously opened memory block as obtained from the DDR_OpenMemoryBlock() function.
memorySizeInChunks	Returns the number of 32-bit chunks in the memory block.

Returns: Returns a value from the DDR_ErrorCode enumeration indicating success or failure.

Definition at line 171 of file Adapter_BackEnd.c.

References _ConvertHandleToBlockIndex(), DDR_ErrorCode_Invalid_Handle, DDR_ErrorCode_Null_Argument, DDR_ErrorCode_Success, and MAX_DATA_SIZE.

Referenced by Adapter_GetMemorySize(), and DataReaderWriter::DataReaderWriter().

◆ DDR_OpenMemoryBlock()

DllExport DDR_ErrorCode DDR_OpenMemoryBlock	(	const char *	blockName,
		int *	dataHandle
	)

Open access to a memory block for exclusive use, given the name of the memory block.

Parameters

blockName	Name of the block to access (one of the predefined names, `BLOCK_NAME_0`, `BLOCK_NAME_1`, or `BLOCK_NAME_2`)
dataHandle	Returns a handle to be used for accessing the specific memory block.

Returns: Returns a value from the DDR_ErrorCode enumeration indicating success or failure.

Definition at line 121 of file Adapter_BackEnd.c.

References _FindBlock(), DDR_ErrorCode_Block_Already_Opened, DDR_ErrorCode_Invalid_Block_Name, DDR_ErrorCode_Null_Argument, DDR_ErrorCode_Success, DDR_INVALID_HANDLE, MemoryBlock::locked, and memory_blocks.

Referenced by Adapter_OpenMemory(), and DataReaderWriter::DataReaderWriter().

◆ DDR_SetDataChunk()

DllExport DDR_ErrorCode DDR_SetDataChunk	(	int	dataHandle,
		int	chunkOffset,
		uint32_t	value
	)

Writes a single 32-bit value to the given offset in the memory block indicated by the specified handle.

Parameters

dataHandle	Handle to a previously opened memory block as obtained from the DDR_OpenMemoryBlock() function.
chunkOffset	Offset into the memory block to which to set the value (range is 0 to DDR_MAX_OFFSET-1).
value	The value to write to the memory block

Returns: Returns a value from the DDR_ErrorCode enumeration indicating success or failure.

Definition at line 219 of file Adapter_BackEnd.c.

References _ConvertHandleToBlockIndex(), _IsValidOffset(), MemoryBlock::data, DDR_ErrorCode_Block_Not_Opened, DDR_ErrorCode_Invalid_Handle, DDR_ErrorCode_Invalid_Offset, DDR_ErrorCode_Success, and memory_blocks.

Referenced by Adapter_WriteMemory(), and DataReaderWriter::Write().

Variable Documentation

◆ BLOCK_NAME_0

DllExport const char* BLOCK_NAME_0

extern

Name of the first block.

Definition at line 13 of file Adapter_BackEnd.c.

Referenced by DataReaderWriter::_GetBlockNameForBlockNumber(), and _GetBlockNameForBlockNumber().

◆ BLOCK_NAME_1

DllExport const char* BLOCK_NAME_1

extern

Name of the second block.

Definition at line 14 of file Adapter_BackEnd.c.

Referenced by DataReaderWriter::_GetBlockNameForBlockNumber(), and _GetBlockNameForBlockNumber().

◆ BLOCK_NAME_2

DllExport const char* BLOCK_NAME_2

extern

Name of the third block.

Definition at line 15 of file Adapter_BackEnd.c.

Referenced by DataReaderWriter::_GetBlockNameForBlockNumber(), and _GetBlockNameForBlockNumber().
