Implementation of the Adapter functions used in the Adapter Pattern. More...

#include <stdio.h>
#include <string.h>
#include <Adapter_BackEnd.h>
#include "helpers/_countof.h"
#include "Adapter_Functions.h"

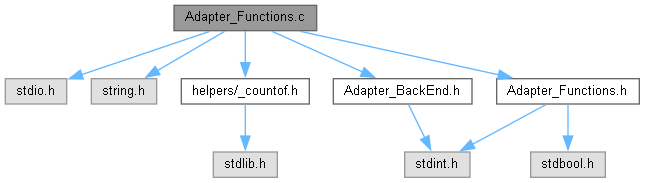

Include dependency graph for Adapter_Functions.c:

Go to the source code of this file.

Functions
static const char *	_GetBlockNameForBlockNumber (MemoryBlockNumber blockNumber)
	Given a block number, retrieve the corresponding block name.

static void	_ResetLastError (void)
	Set the last error message to an empty string. Call this before doing any operation.

static const char *	_GetErrorMessage (DDR_ErrorCode errorCode)
	Convert the given error code to a string message.

static void	_ReportErrorMessage (const char message, const char prompt)
	Format the given message and prompt into a single error message string.

static void	_ReportDDRError (DDR_ErrorCode errorCode, const char *prompt)
	Create a human-readable error message for the given error code, adding a prompt to provide some context to the error. Use the GetLastErrorMessage() function to retrieve the string.

bool	Adapter_OpenMemory (MemoryBlockNumber blockNumber, int *dataHandle)
	Open a memory block for access.

bool	Adapter_CloseMemory (int dataHandle)
	Closes a memory block from access.

bool	Adapter_GetMemorySize (int dataHandle, int *sizeInBytes)
	Retrieve the number of bytes in the memory block associated with the specified data handle.

bool	Adapter_ReadMemory (int dataHandle, int byteOffset, uint8_t buffer, int maxBytes, int bytesRead)
	Read a requested number of bytes from the memory block associated with the given handle.

bool	Adapter_WriteMemory (int dataHandle, int byteOffset, const uint8_t buffer, int maxBytes, int bytesWritten)
	Write a requested number of bytes to the memory block associated with the given handle.

const char *	Adapter_GetLastErrorMessage (void)
	Retrieve a string describing the last error that occurred in the Adapter.

const char *	Adapter_BufferToString (const uint8_t *data, uint32_t maxBytes, int indent)
	Convert the specified data up to the specified number of bytes into a string by performing a "hex dump" on the data.

Variables
static char	_lastError [128] = { 0 }
	Holds last error message.

static char	_hexdump [512] = { 0 }
	Collects hex dump as a single string. We do not expect more than about 424 bytes per hex dump.

Detailed Description

Implementation of the Adapter functions used in the Adapter Pattern.

Definition in file Adapter_Functions.c.

Function Documentation

◆ _GetBlockNameForBlockNumber()

static const char * _GetBlockNameForBlockNumber ( MemoryBlockNumber blockNumber )

static

Given a block number, retrieve the corresponding block name.

Parameters

blockNumber A value from the MemoryBlockNumber enumeration indicating the block of memory to open.

Returns: Returns a pointer to the block name if the block number is recognized; otherwise returns NULL.

Definition at line 25 of file Adapter_Functions.c.

References BLOCK_NAME_0, BLOCK_NAME_1, BLOCK_NAME_2, Memory_Block_0, Memory_Block_1, and Memory_Block_2.

Referenced by Adapter_OpenMemory().

◆ _GetErrorMessage()

static const char * _GetErrorMessage ( DDR_ErrorCode errorCode )

static

Convert the given error code to a string message.

Parameters

errorCode A value from the DDR_ErrorCode enumeration.

Returns: A constant string describing the error.

Definition at line 64 of file Adapter_Functions.c.

References DDR_ErrorCode_Block_Already_Opened, DDR_ErrorCode_Block_Not_Opened, DDR_ErrorCode_Invalid_Block_Name, DDR_ErrorCode_Invalid_Handle, DDR_ErrorCode_Invalid_Offset, DDR_ErrorCode_Null_Argument, and DDR_ErrorCode_Success.

Referenced by _ReportDDRError().

◆ _ReportDDRError()

static void _ReportDDRError	(	DDR_ErrorCode	errorCode,
		const char *	prompt
	)

static

Create a human-readable error message for the given error code, adding a prompt to provide some context to the error. Use the GetLastErrorMessage() function to retrieve the string.

Parameters

errorCode	A value from the DDR_ErrorCode enumeration indicating the error that occurred.
prompt	A prompt that indicates the context in which the error occurred.

Definition at line 127 of file Adapter_Functions.c.

References _GetErrorMessage(), and _ReportErrorMessage().

Referenced by Adapter_CloseMemory(), Adapter_GetMemorySize(), Adapter_OpenMemory(), Adapter_ReadMemory(), and Adapter_WriteMemory().

◆ _ReportErrorMessage()

static void _ReportErrorMessage	(	const char *	message,
		const char *	prompt
	)

static

Format the given message and prompt into a single error message string.

Parameters

message	The error message to report. Cannot be NULL.
prompt	A prompt that indicates the context in which the error occurred. Cannot be NULL.

Definition at line 112 of file Adapter_Functions.c.

References _countof, and _lastError.

Referenced by _ReportDDRError(), Adapter_BufferToString(), Adapter_GetMemorySize(), Adapter_OpenMemory(), Adapter_ReadMemory(), and Adapter_WriteMemory().

◆ _ResetLastError()

static void _ResetLastError ( void )

static

Set the last error message to an empty string. Call this before doing any operation.

Definition at line 54 of file Adapter_Functions.c.

References _lastError.

Referenced by Adapter_CloseMemory(), Adapter_GetMemorySize(), Adapter_OpenMemory(), Adapter_ReadMemory(), and Adapter_WriteMemory().

◆ Adapter_BufferToString()

const char * Adapter_BufferToString	(	const uint8_t *	data,
		uint32_t	maxBytes,
		int	indent
	)

Convert the specified data up to the specified number of bytes into a string by performing a "hex dump" on the data.

Parameters

data	The data to process.
maxBytes	The number of bytes from the data to process.
indent	Number of spaces to indent each line.

Returns: A string containing the data in the form of a hex dump, possibly multiple lines.

Definition at line 400 of file Adapter_Functions.c.

References _countof, _hexdump, and _ReportErrorMessage().

Referenced by Adapter_Exercise().

◆ Adapter_CloseMemory()

bool Adapter_CloseMemory ( int dataHandle )

Closes a memory block from access.

Parameters

dataHandle The handle returned from Adapter_OpenMemory() to be closed.

Returns: Returns true if all went well; otherwise, returns false, use AdapterGetLastErrorMessage() to get the reason for the failure.

Definition at line 173 of file Adapter_Functions.c.

References _ReportDDRError(), _ResetLastError(), DDR_CloseMemoryBlock(), and DDR_ErrorCode_Success.

Referenced by Adapter_Exercise().

◆ Adapter_GetLastErrorMessage()

const char * Adapter_GetLastErrorMessage ( void )

Retrieve a string describing the last error that occurred in the Adapter.

Returns: A string containing an error message. Remains valid until the next Adapter operation that is called.

Definition at line 391 of file Adapter_Functions.c.

References _lastError.

Referenced by Adapter_Exercise().

◆ Adapter_GetMemorySize()

bool Adapter_GetMemorySize	(	int	dataHandle,
		int *	sizeInBytes
	)

Retrieve the number of bytes in the memory block associated with the specified data handle.

Parameters

dataHandle	The handle returned from Adapter_OpenMemory() to access.
sizeInBytes	Returns the number of bytes available to access.

Returns: Returns true if all went well; otherwise, returns false, use AdapterGetLastErrorMessage() to get the reason for the failure.

Definition at line 191 of file Adapter_Functions.c.

References _ReportDDRError(), _ReportErrorMessage(), _ResetLastError(), DDR_ErrorCode_Success, and DDR_GetMemorySize().

Referenced by Adapter_Exercise().

◆ Adapter_OpenMemory()

bool Adapter_OpenMemory	(	MemoryBlockNumber	blockNumber,
		int *	dataHandle
	)

Open a memory block for access.

Parameters

blockNumber	A value from the MemoryBlockNumber enumeration indicating which memory block to access.
dataHandle	Returns the handle to the memory block to access.

Returns: Returns true if all went well; otherwise, returns false, use AdapterGetLastErrorMessage() to get the reason for the failure.

Definition at line 142 of file Adapter_Functions.c.

References _GetBlockNameForBlockNumber(), _ReportDDRError(), _ReportErrorMessage(), _ResetLastError(), DDR_ErrorCode_Success, and DDR_OpenMemoryBlock().

Referenced by Adapter_Exercise().

◆ Adapter_ReadMemory()

bool Adapter_ReadMemory	(	int	dataHandle,
		int	byteOffset,
		uint8_t *	buffer,
		int	maxBytes,
		int *	bytesRead
	)

Read a requested number of bytes from the memory block associated with the given handle.

Parameters

dataHandle	The handle returned from Adapter_OpenMemory() to access.
byteOffset	Byte offset into the memory block from which to start reading.
buffer	Buffer to fill with bytes from the memory block.
maxBytes	The number of bytes to read.
bytesRead	if not NULL, returns the number of bytes actually read.

Returns: Returns true if all went well; otherwise, returns false, use AdapterGetLastErrorMessage() to get the reason for the failure.

Definition at line 223 of file Adapter_Functions.c.

References _ReportDDRError(), _ReportErrorMessage(), _ResetLastError(), DDR_ErrorCode_Success, DDR_GetDataChunk(), and DDR_MAX_OFFSET.

Referenced by Adapter_Exercise().

◆ Adapter_WriteMemory()

bool Adapter_WriteMemory	(	int	dataHandle,
		int	byteOffset,
		const uint8_t *	buffer,
		int	maxBytes,
		int *	bytesWritten
	)

Write a requested number of bytes to the memory block associated with the given handle.

Parameters

dataHandle	The handle returned from Adapter_OpenMemory() to access.
byteOffset	Byte offset into the memory block to which to start writing.
buffer	Buffer of bytes to write to the memory block.
maxBytes	The number of bytes to write.
bytesWritten	If not NULL, returns the number of bytes actually written.

Returns: Returns true if all went well; otherwise, returns false, use AdapterGetLastErrorMessage() to get the reason for the failure.

Definition at line 294 of file Adapter_Functions.c.

References _ReportDDRError(), _ReportErrorMessage(), _ResetLastError(), DDR_ErrorCode_Success, DDR_GetDataChunk(), DDR_MAX_OFFSET, and DDR_SetDataChunk().

Referenced by Adapter_Exercise().

Variable Documentation

◆ _hexdump

char _hexdump[512] = { 0 }

static

Collects hex dump as a single string. We do not expect more than about 424 bytes per hex dump.

Definition at line 16 of file Adapter_Functions.c.

Referenced by Adapter_BufferToString().

◆ _lastError

char _lastError[128] = { 0 }

static

Holds last error message.

Definition at line 15 of file Adapter_Functions.c.

Referenced by _ReportErrorMessage(), _ResetLastError(), and Adapter_GetLastErrorMessage().
