HandlerChain_Message.h File Reference

Declaration of the Message and MessagePosition structures, along with the functions, MessagePosition_ToString(), Message_Initialize(), and Message_ToString(), as used in the HandlerChain Pattern. More...

#include "helpers/dynamicstring.h"

Include dependency graph for HandlerChain_Message.h:

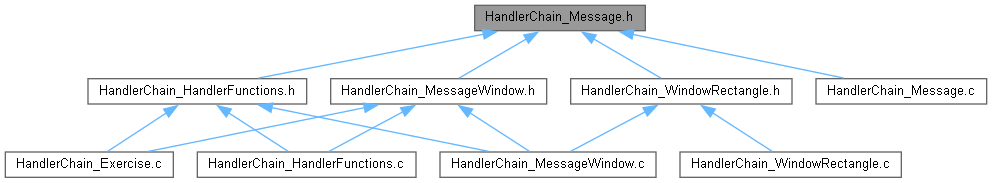

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	MessagePosition
	Position of the message in global coordinates (same scope of coordinates as windows). Although this can handle negative coordinates, the example is careful to use only positive coordinates. More...
struct	Message
	Represents a message sent to the windows. A message contains a type and a position. More...

Macros
#define	__HANDLERCHAIN_MESSAGE_H__

Enumerations
enum	MessageType { Close = 0 , ButtonDown = 1 , ButtonUp = 2 , Destroy = 3 }
	Type of message handled by MessageWindow. More...

Functions
bool	MessagePosition_ToString (MessagePosition *position, DynamicString *output)
	Convert a MessagePosition object to a string representation.
void	Message_Initialize (Message *message, MessageType type, int x, int y)
	Initialize a Message structure.
bool	Message_ToString (Message *message, DynamicString *output)
	Convert a Message object to a string representation.

Detailed Description

Declaration of the Message and MessagePosition structures, along with the functions, MessagePosition_ToString(), Message_Initialize(), and Message_ToString(), as used in the HandlerChain Pattern.

Definition in file HandlerChain_Message.h.

Macro Definition Documentation

__HANDLERCHAIN_MESSAGE_H__

#define __HANDLERCHAIN_MESSAGE_H__

Definition at line 9 of file HandlerChain_Message.h.

Enumeration Type Documentation

MessageType

enum MessageType

Type of message handled by MessageWindow.

Enumerator
Close	Window is asked to close itself, generally sent by the window itself in response to a button up in a Close region. Applies only to the currently selected window.
ButtonDown	Selects a window based on position.
ButtonUp	Take an action on the currently selected window.
Destroy	Window is being told to destroy itself. This is sent in response to seeing the Close message.

Definition at line 16 of file HandlerChain_Message.h.

Function Documentation

Message_Initialize()

void Message_Initialize	(	Message *	message,
		MessageType	type,
		int	x,
		int	y
	)

Initialize a Message structure.

Parameters

message	The Message structure to initialize.
type	Value from the MessageType enumeration indicating the type of message being created.
x	Horizontal position of the message.
y	Vertical position of the message.

Definition at line 51 of file HandlerChain_Message.c.

References Message::MessageType, Message::Position, MessagePosition::X, and MessagePosition::Y.

Referenced by _HandleButtonUpMessage(), _HandleChain_DestroyWindows(), _HandleCloseMessage(), and HandlerChain_Exercise().

Message_ToString()

bool Message_ToString	(	Message *	message,
		DynamicString *	output
	)

Convert a Message object to a string representation.

Parameters

message	The Message object to convert.
output	The string representation of the Message object. Call DynamicString_Initialize() on this object before passing as an argument.

Returns

Returns true if the message was successfully converted to a string; otherwise, returns false, indicating an out of memory condition (or a NULL argument).

Definition at line 64 of file HandlerChain_Message.c.

References ButtonDown, ButtonUp, Close, Destroy, DynamicString_Append(), DynamicString_Clear(), DynamicString_Initialize(), formatstring(), MessagePosition_ToString(), Message::MessageType, Message::Position, and DynamicString::string.

MessagePosition_ToString()

bool MessagePosition_ToString	(	MessagePosition *	position,
		DynamicString *	output
	)

Convert a MessagePosition object to a string representation.

Parameters

position	The MessagePosition object to convert.
output	A DynamicString in which to store the string representation of the position argument. Call DynamicString_Initialize() on this object before passing as an argument.

Returns

Returns true if the message position was successfully converted to a string; otherwise, returns false, indicating an out of memory condition (or a NULL argument).

Definition at line 17 of file HandlerChain_Message.c.

References DynamicString_Append(), formatstring(), MessagePosition::X, and MessagePosition::Y.

Referenced by Message_ToString().
