Declaration of the MessageWindow structure, along with the implementation of the support functions, MessageWindow_Create(), MessageWindow_Destroy(), MessageWindow_ProcessMessage(), and MessageWindow_ToString(), as used in the HandlerChain Pattern. More...

#include <stdlib.h>
#include <stdio.h>
#include "helpers/formatstring.h"
#include "HandlerChain_WindowRectangle.h"
#include "HandlerChain_HandlerFunctions.h"
#include "HandlerChain_MessageWindow.h"

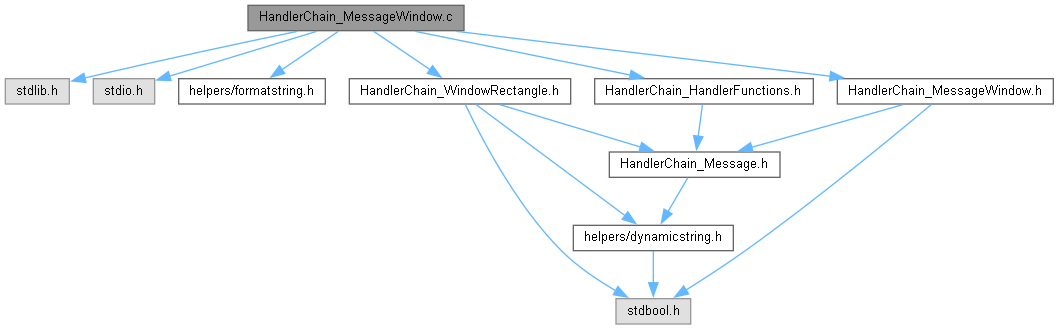

Include dependency graph for HandlerChain_MessageWindow.c:

Go to the source code of this file.

Classes
struct	_Window
	Represents a window in an arbitrary space. It has an ID, title, and position. A close box is within the window's rectangle. The window can be selected by sending a button down message with the position within this window. If a button down message occurs outside this window, it is deselected. More...

Typedefs
typedef struct _Window	MessageWindow
	Alias for struct _Window, which represents a window in an arbitrary space. It has an ID, title, and position. A close box is within the window's rectangle. The window can be selected by sending a button down message with the position within this window. If a button down message occurs outside this window, it is deselected.

Functions
static void	_AppendWindowToList (MessageWindow *window)
	Helper function to append the given MessageWindow to the list of MessageWindow objects.

static void	_RemoveWindowFromList (MessageWindow *window)
	Helper function to remove the given MessageWindow object from the linked list of MessageWindow objects.

static MessageWindow *	_FindWindow (int windowId)
	Helper function to find a MessageWindow given the window's ID.

static bool	_HandleButtonDownMessage (MessageWindow window, Message message)
	Helper function to handle the ButtonDown message.

static bool	_HandleButtonUpMessage (MessageWindow window, Message message)
	Helper function to handle the ButtonUp message.

static bool	_HandleCloseMessage (MessageWindow window, Message message)
	Helper function to handle the Close message.

static bool	_HandleDestroyMessage (MessageWindow window, Message message)
	Helper function to trigger the destruction of the window. The window is destroyed and can no longer receive any messages.

int	MessageWindow_Create (const char *title, int x, int y, int w, int h)
	Create a MessageWindow object with the given properties and return the ID of the object.

void	MessageWindow_Destroy (int windowId)
	Destroy the MessageWindow object with the given ID. Removes the window from any message handling as well.

bool	MessageWindow_ProcessMessage (int windowId, Message *message)
	Pass a Message object to a window for processing.

bool	MessageWindow_ToString (int windowId, DynamicString *output)
	Convert the specified window to a string representation.

Variables
const int	CLOSE_WIDTH = 2
	Width of the close region in the window.

const int	CLOSE_HEIGHT = 2
	Height of the close region in the window.

static MessageWindow *	_windowList = NULL
	List of all created MessageWindow objects, in a double-linked list.

static int	_nextWindowId = 1
	The next ID to use for a new window.

Detailed Description

Declaration of the MessageWindow structure, along with the implementation of the support functions, MessageWindow_Create(), MessageWindow_Destroy(), MessageWindow_ProcessMessage(), and MessageWindow_ToString(), as used in the HandlerChain Pattern.

Definition in file HandlerChain_MessageWindow.c.

Typedef Documentation

◆ MessageWindow

typedef struct _Window MessageWindow

Alias for struct _Window, which represents a window in an arbitrary space. It has an ID, title, and position. A close box is within the window's rectangle. The window can be selected by sending a button down message with the position within this window. If a button down message occurs outside this window, it is deselected.

Definition at line 82 of file HandlerChain_MessageWindow.c.

Function Documentation

◆ _AppendWindowToList()

static void _AppendWindowToList ( MessageWindow * window )

static

Helper function to append the given MessageWindow to the list of MessageWindow objects.

Parameters

window A MessageWindow object to append to the list.

Definition at line 100 of file HandlerChain_MessageWindow.c.

References _windowList, _Window::next, and _Window::prev.

Referenced by MessageWindow_Create().

◆ _FindWindow()

static MessageWindow * _FindWindow ( int windowId )

static

Helper function to find a MessageWindow given the window's ID.

Parameters

windowId The ID of the window to find.

Returns: Returns a pointer to the MessageWindow that matches the ID; otherwise, returns NULL to indicate no window exists by that ID.

Definition at line 153 of file HandlerChain_MessageWindow.c.

References _Window::_windowId, _windowList, and _Window::next.

Referenced by MessageWindow_Destroy(), MessageWindow_ProcessMessage(), and MessageWindow_ToString().

◆ _HandleButtonDownMessage()

static bool _HandleButtonDownMessage	(	MessageWindow *	window,
		Message *	message
	)

static

Helper function to handle the ButtonDown message.

Parameters

window	The MessageWindow that is handling the message
message	A Message object describing the ButtonDown message.

Returns: Always returns false even if the message was handled (allows other windows to select/deselect themselves).

Definition at line 183 of file HandlerChain_MessageWindow.c.

References _Window::_selected, _Window::_title, _Window::_windowBox, Message::Position, and WindowRectangle_PointInside().

Referenced by MessageWindow_ProcessMessage().

◆ _HandleButtonUpMessage()

static bool _HandleButtonUpMessage	(	MessageWindow *	window,
		Message *	message
	)

static

Helper function to handle the ButtonUp message.

Parameters

window	The MessageWindow that is handling the message
message	A Message object describing the ButtonUp message.

Returns: Returns true if the message was handled; otherwise, returns false indicating the message was not handled.

Definition at line 221 of file HandlerChain_MessageWindow.c.

References _Window::_closeBox, _Window::_selected, _Window::_title, _Window::_windowBox, _Window::_windowId, Close, HandlerChain_SendMessage(), Message_Initialize(), Message::Position, WindowRectangle_PointInside(), MessagePosition::X, and MessagePosition::Y.

Referenced by MessageWindow_ProcessMessage().

◆ _HandleCloseMessage()

static bool _HandleCloseMessage	(	MessageWindow *	window,
		Message *	message
	)

static

Helper function to handle the Close message.

Parameters

window	The MessageWindow that is handling the message
message	A Message object describing the Close message.

Returns: Returns true if the message was handled; otherwise, returns false indicating the message was not handled.

Definition at line 261 of file HandlerChain_MessageWindow.c.

References _Window::_selected, _Window::_title, _Window::_windowId, Destroy, HandlerChain_SendMessage(), and Message_Initialize().

Referenced by MessageWindow_ProcessMessage().

◆ _HandleDestroyMessage()

static bool _HandleDestroyMessage	(	MessageWindow *	window,
		Message *	message
	)

static

Helper function to trigger the destruction of the window. The window is destroyed and can no longer receive any messages.

The given MessageWindow is destroyed and can no longer be used after this function returns.

Parameters

window	The MessageWindow that is handling the message.
message	The Message object describing the Destroy message.

Returns: Returns true if the message was handled; otherwise, returns false indicating the message was not handled.

Definition at line 299 of file HandlerChain_MessageWindow.c.

References _Window::_selected, _Window::_title, _Window::_windowId, HandlerChain_RemoveWindow(), and MessageWindow_Destroy().

Referenced by MessageWindow_ProcessMessage().

◆ _RemoveWindowFromList()

static void _RemoveWindowFromList ( MessageWindow * window )

static

Helper function to remove the given MessageWindow object from the linked list of MessageWindow objects.

Parameters

window The MessageWindow object to remove from the list.

Definition at line 123 of file HandlerChain_MessageWindow.c.

References _windowList, _Window::next, and _Window::prev.

Referenced by MessageWindow_Destroy().

◆ MessageWindow_Create()

int MessageWindow_Create	(	const char *	title,
		int	x,
		int	y,
		int	w,
		int	h
	)

Create a MessageWindow object with the given properties and return the ID of the object.

Parameters

title	Title of the window.
x	Horizontal position of the upper left corner of the window.
y	Vertical position of the upper left corner of the window.
w	Width of the window.
h	Height of the window.

Returns: Returns the ID of the window, if successfully created; otherwise, returns false.

Definition at line 318 of file HandlerChain_MessageWindow.c.

References _AppendWindowToList(), _Window::_closeBox, _nextWindowId, _Window::_title, _Window::_windowBox, _Window::_windowId, CLOSE_HEIGHT, CLOSE_WIDTH, HandlerChain_AddWindow(), WindowRectangle::Right, WindowRectangle::Top, and WindowRectangle_Initialize().

Referenced by _HandlerChain_ConstructWindowChain().

◆ MessageWindow_Destroy()

void MessageWindow_Destroy ( int windowId )

Destroy the MessageWindow object with the given ID. Removes the window from any message handling as well.

Parameters

windowId ID of the MessageWindow to destroy.

Definition at line 354 of file HandlerChain_MessageWindow.c.

References _FindWindow(), and _RemoveWindowFromList().

Referenced by _HandleDestroyMessage().

◆ MessageWindow_ProcessMessage()

bool MessageWindow_ProcessMessage	(	int	windowId,
		Message *	message
	)

Pass a Message object to a window for processing.

Parameters

windowId	The ID of the window who will get the message.
message	The Message object to process.

Returns: Returns true if the message was handled and no further windows should be notified; otherwise return false to allow the message to be passed to subsequent windows.

Definition at line 367 of file HandlerChain_MessageWindow.c.

References _FindWindow(), _HandleButtonDownMessage(), _HandleButtonUpMessage(), _HandleCloseMessage(), _HandleDestroyMessage(), ButtonDown, ButtonUp, Close, Destroy, and Message::MessageType.

Referenced by HandlerChain_SendMessage().

◆ MessageWindow_ToString()

bool MessageWindow_ToString	(	int	windowId,
		DynamicString *	output
	)

Convert the specified window to a string representation.

Parameters

windowId	ID of the window to convert.
output	A DynamicString that returns the string version of the window. Call DynamicString_Initialize() on this object before passing as an argument.

Returns: Returns true if the message window was converted to a string; otherwise, returns false, indicating an out of memory condition (or a NULL argument).

Definition at line 409 of file HandlerChain_MessageWindow.c.

References _FindWindow(), _Window::_selected, _Window::_title, _Window::_windowBox, _Window::_windowId, DynamicString_Append(), DynamicString_Clear(), formatstring(), DynamicString::string, and WindowRectangle_ToString().

Referenced by HandlerChain_ToString().
