HandlerChain_WindowRectangle.h File Reference

Declaration of the WindowRectangle structure and its support functions, WindowRectangle_Initialize(), WindowRectangle_PointInside(), and WindowRectangle_ToString(), as used in the HandlerChain Pattern. More...

#include <stdbool.h>
#include "helpers/dynamicstring.h"
#include "HandlerChain_Message.h"

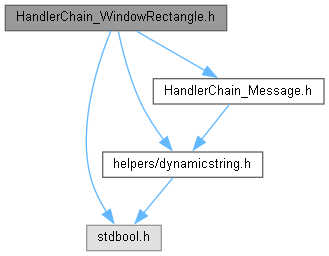

Include dependency graph for HandlerChain_WindowRectangle.h:

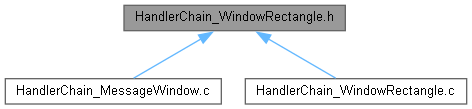

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	WindowRectangle
	Represents a rectangular region, with upper left and lower right coordinates. More...

Macros
#define	__HANDLERCHAIN_WINDOWRECTANGLE_H__

Functions
void	WindowRectangle_Initialize (WindowRectangle *rectangle, int x, int y, int width, int height)
	Initialize the specified WindowRectangle based on the given position and size in some arbitrary space. Ensures a minimum size.
bool	WindowRectangle_PointInside (WindowRectangle *rectangle, MessagePosition *point)
	Determine if the given WindowRectangle object contains the given MessagePosition.
bool	WindowRectangle_ToString (WindowRectangle *rectangle, DynamicString *output)
	Convert the given WindowRectangle to a string representation.

Detailed Description

Declaration of the WindowRectangle structure and its support functions, WindowRectangle_Initialize(), WindowRectangle_PointInside(), and WindowRectangle_ToString(), as used in the HandlerChain Pattern.

Definition in file HandlerChain_WindowRectangle.h.

Macro Definition Documentation

__HANDLERCHAIN_WINDOWRECTANGLE_H__

#define __HANDLERCHAIN_WINDOWRECTANGLE_H__

Definition at line 10 of file HandlerChain_WindowRectangle.h.

Function Documentation

WindowRectangle_Initialize()

void WindowRectangle_Initialize	(	WindowRectangle *	rectangle,
		int	x,
		int	y,
		int	width,
		int	height
	)

Initialize the specified WindowRectangle based on the given position and size in some arbitrary space. Ensures a minimum size.

Parameters

rectangle	A WindowRectangle object to initialize.
x	Horizontal position of the upper left corner.
y	Vertical position of the upper left corner.
width	Width of the rectangle.
height	Height of the rectangle.

Definition at line 29 of file HandlerChain_WindowRectangle.c.

References WindowRectangle::Bottom, WindowRectangle::Left, MINIMUM_HEIGHT, MINIMUM_WIDTH, WindowRectangle::Right, and WindowRectangle::Top.

Referenced by MessageWindow_Create().

WindowRectangle_PointInside()

bool WindowRectangle_PointInside	(	WindowRectangle *	rectangle,
		MessagePosition *	point
	)

Determine if the given WindowRectangle object contains the given MessagePosition.

Parameters

rectangle	A WindowRectangle object to examine.
point	A MessagePosition object specifying a point in the same space as the rectangle value.

Returns

Returns true if the MessagePosition is in the WindowRectangle; otherwise, returns false.

Definition at line 51 of file HandlerChain_WindowRectangle.c.

References WindowRectangle::Bottom, WindowRectangle::Left, WindowRectangle::Right, WindowRectangle::Top, MessagePosition::X, and MessagePosition::Y.

Referenced by _HandleButtonDownMessage(), and _HandleButtonUpMessage().

WindowRectangle_ToString()

bool WindowRectangle_ToString	(	WindowRectangle *	rectangle,
		DynamicString *	output
	)

Convert the given WindowRectangle to a string representation.

Parameters

rectangle	A WindowRectangle to convert.
output	A DynamicString that returns the string version of the rectangle. Call DynamicString_Initialize() on this object before passing as an argument.

Returns

Returns true if the rectangle was formatted as a string; otherwise, returns false, indicating an out of memory condition (or NULL argument).

Definition at line 70 of file HandlerChain_WindowRectangle.c.

References WindowRectangle::Bottom, DynamicString_Append(), formatstring(), WindowRectangle::Left, WindowRectangle::Right, and WindowRectangle::Top.

Referenced by MessageWindow_ToString().
