HandlerChain Class Reference

Represents a list of handlers that all implement the IMessageHandler interface. This list can be dynamically updated and each element in the list is passed messages for processing. More...

#include <HandlerChain_Class.h>

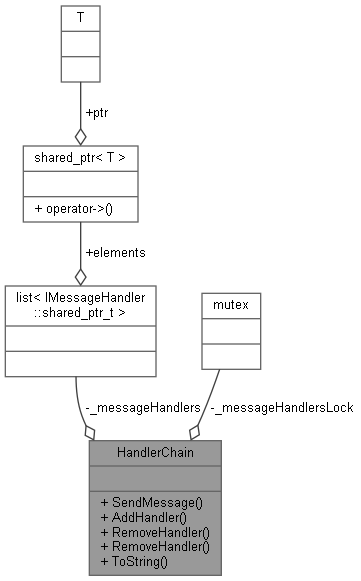

Collaboration diagram for HandlerChain:

Public Types
using	unique_ptr_t = std::unique_ptr< HandlerChain >

Public Member Functions
void	SendMessage (Message *message)
	Send a message to each of the handlers in the list, protected by a multi-threading lock.
void	AddHandler (IMessageHandler::shared_ptr_t window)
	Add an instance of the IMessageHandler interface to end of the list of handlers, protected by a multi-threading lock.
void	RemoveHandler (IMessageHandler::shared_ptr_t window)
	Remove an instance of the IMessageHandler interface from the list, protected by a multi-threading lock.
void	RemoveHandler (IMessageHandler *window)
	Remove an instance of the IMessageHandler interface from the list, protected by a multi-threading lock.
std::string	ToString ()
	Convert this HandlerChain to a string, protected by a multi-threading lock.

Private Attributes
std::list< IMessageHandler::shared_ptr_t >	_messageHandlers
	The list of message handlers.
std::mutex	_messageHandlersLock
	Object used to lock access to the message handlers list for multi-threaded support.

Detailed Description

Represents a list of handlers that all implement the IMessageHandler interface. This list can be dynamically updated and each element in the list is passed messages for processing.

Definition at line 77 of file HandlerChain_Class.h.

Member Typedef Documentation

unique_ptr_t

using unique_ptr_t = std::unique_ptr<HandlerChain>

Definition at line 80 of file HandlerChain_Class.h.

Member Function Documentation

AddHandler()

void AddHandler ( IMessageHandler::shared_ptr_t  window )

inline

Add an instance of the IMessageHandler interface to end of the list of handlers, protected by a multi-threading lock.

If a message handler is already in the list, it is not added again.

Parameters

window

The IMessageHandler object to add.

Definition at line 128 of file HandlerChain_Class.h.

References HandlerChain::_messageHandlers, and HandlerChain::_messageHandlersLock.

Referenced by MessageWindow::CreateWindow().

RemoveHandler() [1/2]

void RemoveHandler ( IMessageHandler *  window )

inline

Remove an instance of the IMessageHandler interface from the list, protected by a multi-threading lock.

If the message handler is not in the list, the request to remove is ignored.

Parameters

window

The window to remove

Definition at line 166 of file HandlerChain_Class.h.

References HandlerChain::_messageHandlers, HandlerChain::_messageHandlersLock, and IMessageHandler::ID().

RemoveHandler() [2/2]

void RemoveHandler ( IMessageHandler::shared_ptr_t  window )

inline

Remove an instance of the IMessageHandler interface from the list, protected by a multi-threading lock.

If the message handler is not in the list, the request to remove is ignored.

Parameters

window

The window to remove

Definition at line 152 of file HandlerChain_Class.h.

References HandlerChain::_messageHandlers, and HandlerChain::_messageHandlersLock.

Referenced by MessageWindow::_HandleCloseMessage().

SendMessage()

void SendMessage ( Message *  message )

inline

Send a message to each of the handlers in the list, protected by a multi-threading lock.

Parameters

message

The Message object to send to each handler.

Definition at line 100 of file HandlerChain_Class.h.

References HandlerChain::_messageHandlers, and HandlerChain::_messageHandlersLock.

Referenced by MessageWindow::_HandleButtonUpMessage().

ToString()

std::string ToString ( )

inline

Convert this HandlerChain to a string, protected by a multi-threading lock.

Returns

Returns a string representation of this HandlerChain and all the handlers it contains.

Definition at line 179 of file HandlerChain_Class.h.

References HandlerChain::_messageHandlers, HandlerChain::_messageHandlersLock, and Helpers::formatstring().

Member Data Documentation

_messageHandlers

std::list<IMessageHandler::shared_ptr_t> _messageHandlers

private

The list of message handlers.

Definition at line 86 of file HandlerChain_Class.h.

Referenced by HandlerChain::AddHandler(), MessageWindow::ProcessMessage(), HandlerChain::RemoveHandler(), HandlerChain::SendMessage(), and HandlerChain::ToString().

_messageHandlersLock

std::mutex _messageHandlersLock

private

Object used to lock access to the message handlers list for multi-threaded support.

Definition at line 92 of file HandlerChain_Class.h.

Referenced by HandlerChain::AddHandler(), HandlerChain::RemoveHandler(), HandlerChain::SendMessage(), and HandlerChain::ToString().

---

The documentation for this class was generated from the following file:

• HandlerChain_Class.h
